project 92z Posted February 7 Report Share Posted February 7 I own 2 Z34's, a 92, aka The Girlfriend and a 91, aka The Mistress. The Mistress was recently disassembled for a diy paint job and body work. After reassembly, headlight, taillights, and dash won't work with the switch but will work with the remote start. Looking at the wiring diagram, could be 1 of 3 things, DRL (daylight running lights) control module, side or relay. Anybody know the locations of these? Quote Link to comment Share on other sites More sharing options...
Schurkey Posted February 8 Report Share Posted February 8 Does a '91 or '92 have Damned Daytime Running Lights (DDRL)? I've disabled them on my '98 Monte, and '03 Trailblazer. Kinda think I disabled 'em on my '97 K2500 also, but I don't remember for sure. Pretty sure I didn't need to on my '92 and '93 Luminas. It may be that they were installed on Canadian cars, though. They don't get to own pistols, either. Crazy Canadians. Anyway, the Genuine GM service manual would list the locations of all those items. Quote Link to comment Share on other sites More sharing options...
project 92z Posted February 9 Author Report Share Posted February 9 @Schurkey You are the perfect person to ask! Looking in the Haynes manual, the circuits were installed in the 91-97. Not sure if it's a passive circuit though or if the diagram is a possibility and only on cars with it. Other wise I might be looking for possible rodent damage. I did some proving around today and I'm missing voltage in a few spots. Quote Link to comment Share on other sites More sharing options...
Schurkey Posted February 9 Report Share Posted February 9 I have a distinct distrust of aftermarket service manuals. Doesn't matter which brand--Haynes, Chilton, Clymers, etc. I buy REAL Genuine GM service manuals "used" from eBay at advantageous prices. The GM manuals have occasional errors, especially for the first year of a new platform. My '88 C/K truck manual has heaps of errors, and it was printed way back in '86. But generally speaking, the official manuals are heads-and-shoulders above the aftermarket jobs. The aftermarket manuals make excellent emergency toilet paper. Somewhat certain that DDRLs weren't installed on US cars until '96. Quote Link to comment Share on other sites More sharing options...
White93z34 Posted February 9 Report Share Posted February 9 Are you in Canada or is the car from the Canadian market? A car with DRLs will have a light sensor integrated into the driver side dash speaker grille. If its a US market car they simply do not have DRLs. They were a Canadian market thing to comply with local laws. the DRL module was roughly above the steering column (if equipped) If it works with remote start, I'd be inclined to think wherever the system is installed has a bad connection if the light switch has no control over them. I'd personally start with any of the aftermarket electronics Quote Link to comment Share on other sites More sharing options...
project 92z Posted February 11 Author Report Share Posted February 11 (edited) @Schurkey Edited February 11 by project 92z Duplicate Quote Link to comment Share on other sites More sharing options...
project 92z Posted February 11 Author Report Share Posted February 11 @White93z34 Thanks for the input. I'm still trying to follow the wiring diagram and don't believe there's a DRL circuit anymore. Checked voltage at the switch and nothing except trace voltage with ignition on. That's what's powering the indicator. My plan is to take Schurkey's advice and get the GM manual. I'm the meantime trying to find the headlight circuit breaker. Quote Link to comment Share on other sites More sharing options...

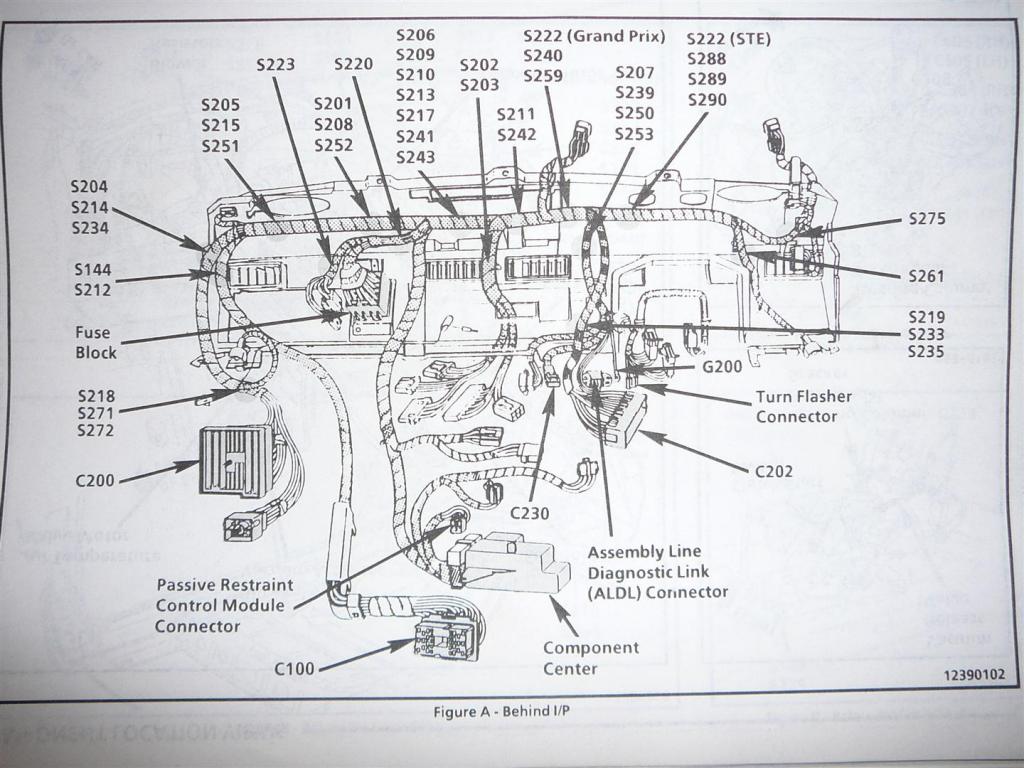

55trucker Posted February 11 Report Share Posted February 11 (edited) 17 hours ago, project 92z said: @White93z34 I'm the meantime trying to find the headlight circuit breaker. The headlamp circuit breaker is located in the component centre. That's under the instrument panel, somewhat centred under the dash panel. If you have a Canadian car the RPO code for the DRL's is T61. Edited February 11 by 55trucker Quote Link to comment Share on other sites More sharing options...

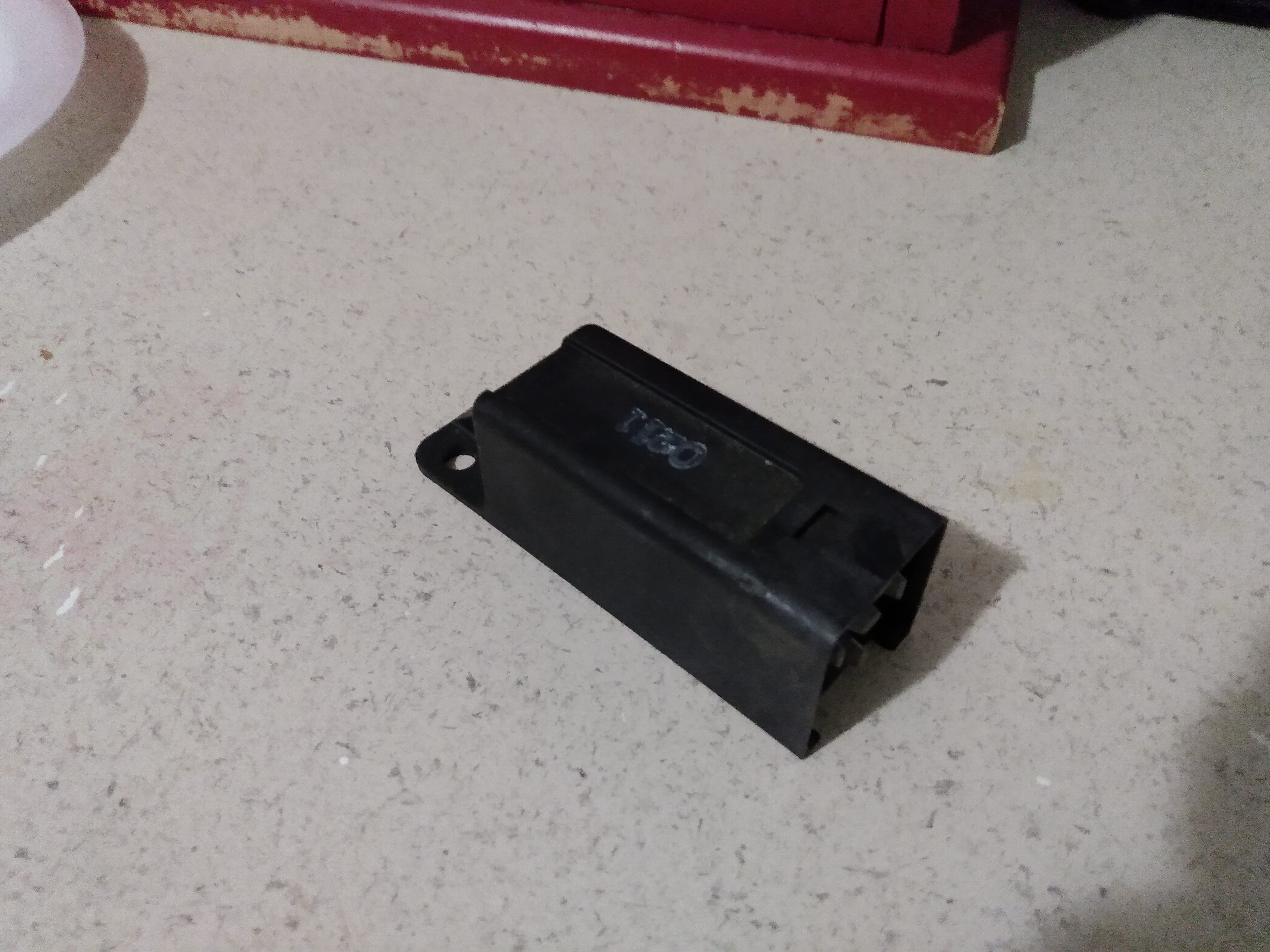

project 92z Posted February 15 Author Report Share Posted February 15 Thanks 55trucker. So I'm guessing that unit needs to be replaced or is it serviceable? I lucked up and found a base model in a local yard and pulled everything I could find under the dash. Looking at the diagram you posted, is this it? Quote Link to comment Share on other sites More sharing options...
55trucker Posted February 15 Report Share Posted February 15 The circuit breaker should be a 20 amp breaker, it'll be 2 pronged, more than likely *metal cased*. What you've displayed is a relay. Quote Link to comment Share on other sites More sharing options...
