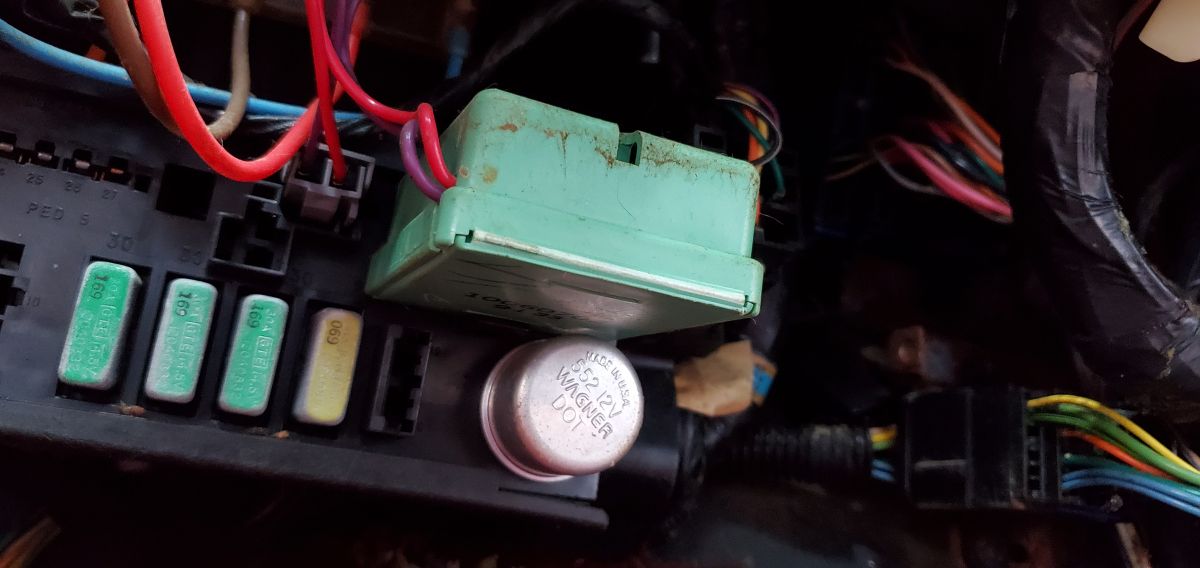

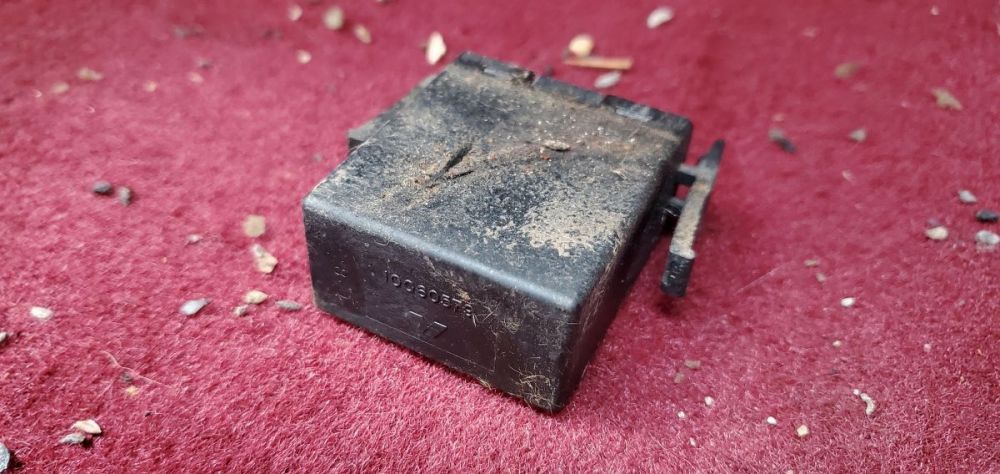

jiggity76 Posted December 20, 2019 Report Share Posted December 20, 2019 (edited) Hey guys, I'm having a hard time figuring out what the chime box look like. I located it under the passenger side instrument panel but not sure what it looks like or exactly where it's located. I call it the chime box but I think it's the warning alarm. It makes that dinging sound when you leave your headlights on when the car is off or if you left your keys in the ignition sort of thing. Thank you! Is it one of these guys? This is the Convenience Center and it's suppose to be here somewhere. I know the silver round relay is the hazard flasher. This is a relay I think but is this it? Or is it the Pistachio colored box? Edited December 20, 2019 by jiggity76 Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted December 20, 2019 Report Share Posted December 20, 2019 the pistachio colored box. jiggity76 1 Quote Link to comment Share on other sites More sharing options...

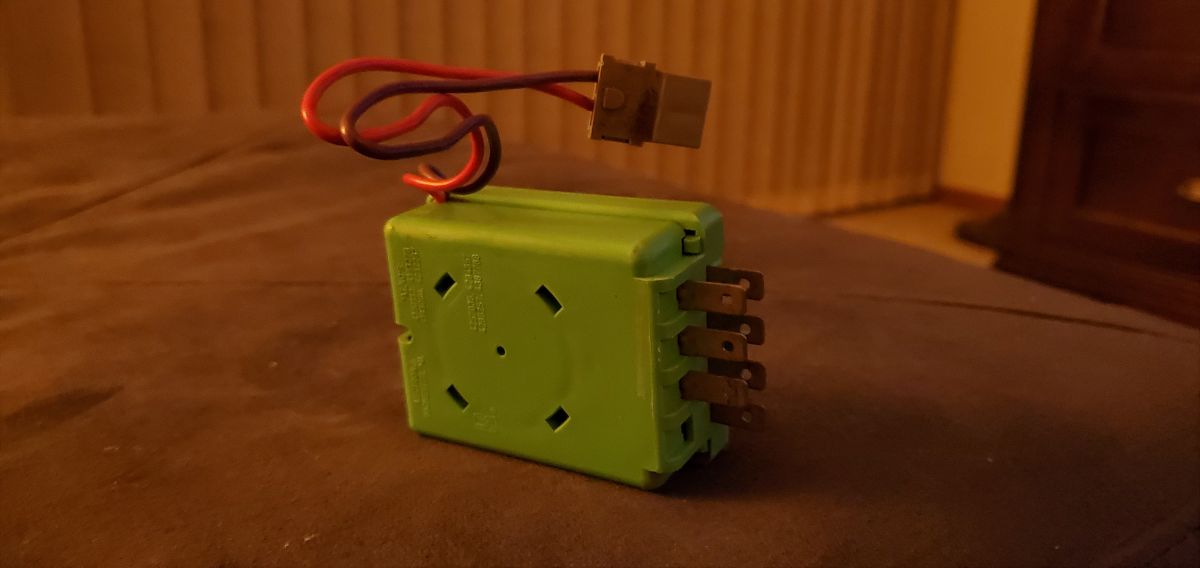

jiggity76 Posted December 20, 2019 Author Report Share Posted December 20, 2019 Ok, thank you! Any ideas on how to get it out? I pulled on it pretty hard and it wouldn't budge. I didn't want to break it. My white 91 has never made any noises so I thought I would try this one from the parts car. Quote Link to comment Share on other sites More sharing options...
jiggity76 Posted December 20, 2019 Author Report Share Posted December 20, 2019 Or is there something else I need to check on the white car that's causing it not to chime like a fuse maybe? Last I checked, all the fuses weren't blown. Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted December 21, 2019 Report Share Posted December 21, 2019 There's a tab on the bottom, slide a thin screwdriver in there and twist slightly. It's likely that, they tend to go bad over time. My truck has one from a 1994 Cutlass convertible. jiggity76 1 Quote Link to comment Share on other sites More sharing options...
jiggity76 Posted December 21, 2019 Author Report Share Posted December 21, 2019 Thank you! You are the best and I will try that tomorrow. I hope it works, I think I remembering it working but not sure. I definitely know the 91 car one is dead. Quote Link to comment Share on other sites More sharing options...
jiggity76 Posted December 21, 2019 Author Report Share Posted December 21, 2019 I just got it loose and out of the parts car. I'll see if it works tomorrow. Thanks again Manic! Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted December 22, 2019 Report Share Posted December 22, 2019 Any time bud, if it doesn't. I think I have a working 1994 box around here. jiggity76 1 Quote Link to comment Share on other sites More sharing options...
jiggity76 Posted December 22, 2019 Author Report Share Posted December 22, 2019 Thank you for the offer! Are they basically the same then? I'll might take you up on that! You won't believe it, my parts guy at the local GM dealer says there are still NOS ones available! rich_e777 1 Quote Link to comment Share on other sites More sharing options...
jiggity76 Posted December 22, 2019 Author Report Share Posted December 22, 2019 Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted December 22, 2019 Report Share Posted December 22, 2019 (edited) I'm not surprised that you can get NOS. The 1994 is slightly different as there are more wires since it also controls the automatic door locks and I think a chime that tells you if your turn signal has been on too long (too bad my mother in law's 1999 Park Avenue didn't have that. I'm sure people used to think she was going around the world to the left. Edited December 22, 2019 by ManicMechanic jiggity76 1 Quote Link to comment Share on other sites More sharing options...
jiggity76 Posted December 22, 2019 Author Report Share Posted December 22, 2019 LOL! That's funny! Did you know these Cutlass Supreme cars have the turn signal left on too long feature too? Of course you did, look who I'm asking! I didn't know that until I looked at the window sticker for the parts car. My 94 Silverado didn't chime as I remember. It was just a solid alarm sound, didn't beep. Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted December 22, 2019 Report Share Posted December 22, 2019 2 hours ago, jiggity76 said: My 94 Silverado didn't chime as I remember. It was just a solid alarm sound, didn't beep. I HATE that chime, that's why I replaced it with a fully functional 1994 Cutlass chime, my locks automatically lock at 9 MPH; my turn signal chime works plus it sounds a lot more modern. jiggity76 1 Quote Link to comment Share on other sites More sharing options...
jiggity76 Posted December 22, 2019 Author Report Share Posted December 22, 2019 I think the Ford products during this same era had an awesome chime. My parents new 90 Cougar LS, loved that sound of it's chime. Quote Link to comment Share on other sites More sharing options...

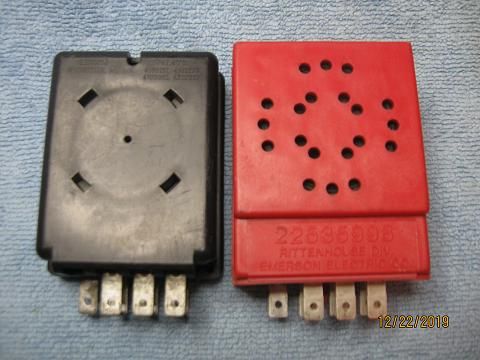

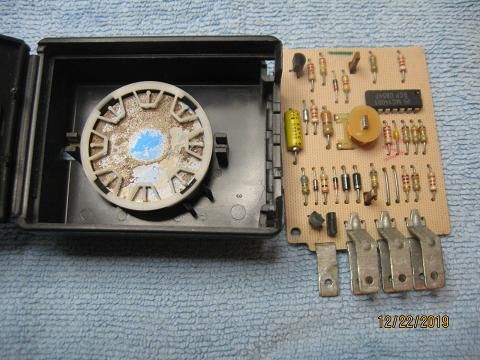

ron350 Posted December 22, 2019 Report Share Posted December 22, 2019 (edited) Jiggity76 on your 1991 chime module what does the red and purple external wires do? The reason that chimes module sounds so bad is because the sound is produced from an electro magnet pulling on a steel disk. If GM made that 2 wire 7-pin module with a speaker you can greatly improve yhe quality of the sound. My 96 Cutlass had the standard seven pin module with the steel disk that sounded bad. One day I was working on a 1988 Astro Van and noticed that the chime was nicer my Cutlass so I pulled the module and discovered that it had a speaker instead of a steel disk. I went to the salvage yard and pulled about 10 chime modules from late 80’s and found about 4 good modules with speakers. I have wired one of the speaker modules in my 75 Chevy truck so that when I open the door with the lights on it will chime. This is a simple 2-wire hook up. The module with the speaker has holes in front of the speaker and the steel disk module does not. Edited December 22, 2019 by ron350 jiggity76 1 Quote Link to comment Share on other sites More sharing options...
jiggity76 Posted December 22, 2019 Author Report Share Posted December 22, 2019 20 minutes ago, ron350 said: Jiggity76 on your 1991 chime module what does the red and purple external wires do? The reason that chimes module sounds so bad is because the sound is produced from an electro magnet pulling on a steel disk. If GM made that 2 wire 7-pin module with a speaker you can greatly improve yhe quality of the sound. My 96 Cutlass had the standard seven pin module with the steel disk that sounded bad. One day I was working on a 1988 Astro Van and noticed that the chime was nicer my Cutlass so I pulled the module and discovered that it had a speaker instead of a steel disk. I went to the salvage yard and pulled about 10 chime modules from late 80’s and found about 4 good modules with speakers. I have wired one of the speaker modules in my 75 Chevy truck so that when I open the door with the lights on it will chime. This is a simple 2-wire hook up. The module with the speaker has holes in front of the speaker and the steel disk module does not. Oh that's very interesting! I didn't know there was so much technology in these little boxes. The wires plug into what GM calls the Convenience Center. It also houses the hazard flasher relay and is wired into the main harness of the car. I'm guessing the wires are for when it knows there is a need to sound the alarm. For example: When you leave your headlights on when the car is off and your keys are in the ignition. When you leave your turn signal on for too long, it will tell you to turn it off, a turn signal reminder. When you left your keys in the ignition and the engine is off, don't forget your keys. Other than that, I'm not really sure. Here's the pic of the Convenience Center and where the chime box lives. Quote Link to comment Share on other sites More sharing options...

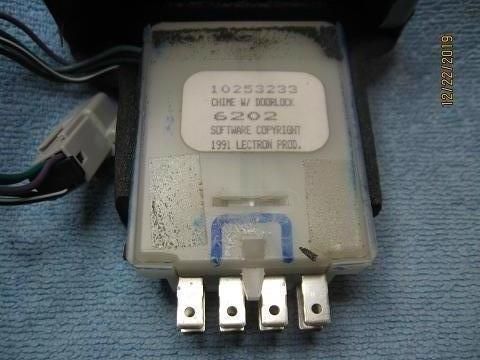

ron350 Posted December 22, 2019 Report Share Posted December 22, 2019 (edited) My memory is so bad I cant find my spare chime module for my 96 Regal so I had to pull it. The 96 Regal module is part #10253233 Chime /With Doorlock. This module has the nasty steel disk with 8 pins and 4 external wires in the same plastic box as your 1991 module. This module is so loud I had to wrap it with foam to dampen the volume. Forgot that i gave up looking for a module for the 96 with a speaker instead of the steel disk. Edited December 22, 2019 by ron350 Picture is ont right side up. Quote Link to comment Share on other sites More sharing options...
ron350 Posted December 22, 2019 Report Share Posted December 22, 2019 (edited) I don’t know why the forum is turning my picture on its side? Edit: The picture is finally right side up. Edited December 22, 2019 by ron350 Quote Link to comment Share on other sites More sharing options...
