Antilock PM III Connector Wheel Speed Sensor

[aaaaamartin]

Anyone please tell me the correct type of connector for the Wheel Speed Sensors.

I have the PM-III on the Regal 1990

I tried these, but the clip is different

Metri-Pack  150.2

https://www.mouser.de/ProductDetail/829-12162193

Thanks Martin

Edited November 12, 2018 by aaaaamartin

[mfewtrail]

Compare them to these: https://www.rockauto.com/en/catalog/pontiac,1990,grand+prix,3.1l+189cid+v6+turbocharged,1255621,electrical-connector,abs+wheel+speed+sensor+connector,762



edit: Copy and paste the link if it doesn't work.



Edited November 12, 2018 by mfewtrail

[aaaaamartin]

Thanks !

Still cannot find the matching type at mouser.

Will order the repair harness from rockauto.

[Imp558]

5 hours ago, aaaaamartin said:

Thanks !

Still cannot find the matching type at mouser.

Will order the repair harness from rockauto.

Can you post a picture of a different one on the car or of the male side? I may be able to help with a source.

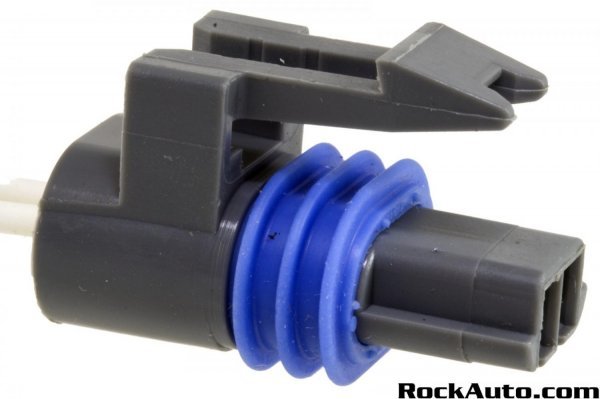

There are 3 different plugs listed at RockAuto.

[aaaaamartin]

The second one listed for the grand prix is the one I have on the Regal.

I Applied a filter to mouser:

Only 2 Positon & Connector

Went through the results.. I may be blind?



https://www.mouser.de/Aptiv/Connectors/Automotive-Connectors/Metri-Pack-150-Series/_/N-1ehb5?P=1yzmtmyZ1z0zlezZ1z0x9zoZ1yvsm2a





[Imp558]

They probably have it and it's one that doesn't have a picture. If you Google the Delphi/Aptiv part numbers pictures will often pop up.

[Imp558]

The Delphi/Aptiv P/N is:12126499

There doesn't seem to be a place that sells them raw, I'd harvest one from a wrecking yard car before I paid what they want for them.

That plug looks really familiar with that lock, I just took one of them apart on my van or her Monte, the one you bought first is commonly used by GM for CTS and VSS.

[aaaaamartin]

Hey,

thanks for helping!

First have to find out which harness among the four went bad.

Took out the conroller, planning to write code for ( such ) diagnostic purposes.

Don't have a protocol spec and no scan-tool to spy from. Will start a new thread for this now.

[jimmyfloyd]

Will this help with your code: https://forum.arduino.cc/index.php?topic=77232.0

[aaaaamartin]

Hi,

thanks for the link. This guy has different problems.

Me I just don't  know how to trigger the ABS-Controller... This one just does nothing.

Without some sort of spec it's just pointless.
