Daermos Posted August 7, 2016 Report Share Posted August 7, 2016 Ok so I am hoping there are a few wiring ninjas out there. I located a written pinout for my DIC and would like to see if anyone can tell me what wires I need for the TCS Switch, TCS on/off light and low Trac light. The Second part to this is how can I wire up the switch and lights with out having the rest of the dic there. If anyone can give me a write up on what is needed or how to do this would be greatly appreciated Quote Link to comment Share on other sites More sharing options...

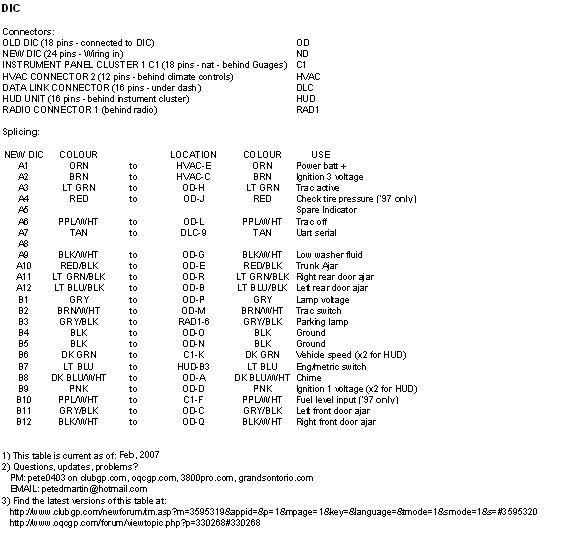

digitaloutsider Posted August 7, 2016 Report Share Posted August 7, 2016 That pinout tells you exactly what you're asking.. Purple/White = Trac Off light Light Green = Low Trac light Brown/White = Switch I would assume that just putting a momentary contact switch on the brown/white and ground wire would achieve what you're looking to do. Daermos 1 Quote Link to comment Share on other sites More sharing options...
Daermos Posted August 7, 2016 Author Report Share Posted August 7, 2016 That pinout tells you exactly what you're asking.. Purple/White = Trac Off light Light Green = Low Trac light Brown/White = Switch I would assume that just putting a momentary contact switch on the brown/white and ground wire would achieve what you're looking to do. Digitaloutsider .... Thanks I fill like a noob I say that and brain did not process. Do You think it's possible to use the tcs switch that is already in car? Quote Link to comment Share on other sites More sharing options...
Nas Escobar Posted August 9, 2016 Report Share Posted August 9, 2016 What exactly are you trying to accomplish? I'm a bit lost here. digitaloutsider 1 Quote Link to comment Share on other sites More sharing options...
digitaloutsider Posted August 13, 2016 Report Share Posted August 13, 2016 The best I can tell is he wants some way to turn the traction control on and off without the DIC? I've tried to read between the lines but I'm pretty lost, too. Quote Link to comment Share on other sites More sharing options...
Daermos Posted August 13, 2016 Author Report Share Posted August 13, 2016 Ok I am ditiching everything from the dic, trying to figure out how I can use the harness wires for the dic to hookup a switch and 2 lights for the tcs Quote Link to comment Share on other sites More sharing options...
Daermos Posted August 13, 2016 Author Report Share Posted August 13, 2016 In short I am building my own kind of dic that will go in its place. Quote Link to comment Share on other sites More sharing options...
Nas Escobar Posted August 13, 2016 Report Share Posted August 13, 2016 So you're trying to come up with your own buttons to replace the DIC? Quote Link to comment Share on other sites More sharing options...
Daermos Posted August 13, 2016 Author Report Share Posted August 13, 2016 Not all just a switch for the traction control and lights everything else is going bye bye Quote Link to comment Share on other sites More sharing options...
Daermos Posted August 14, 2016 Author Report Share Posted August 14, 2016 That pinout tells you exactly what you're asking.. Purple/White = Trac Off light Light Green = Low Trac light Brown/White = Switch I would assume that just putting a momentary contact switch on the brown/white and ground wire would achieve what you're looking to do. ok so this is what i am building, i have kept this pretty close to the chest becasue i am very critical of my own work, This is going to be painted ether black or burgundy red and have lights in route for low trac a tcs on/off Quote Link to comment Share on other sites More sharing options...
Imp558 Posted August 14, 2016 Report Share Posted August 14, 2016 those look like glowshift Quote Link to comment Share on other sites More sharing options...
Daermos Posted August 14, 2016 Author Report Share Posted August 14, 2016 no i wish they are a different brand got all 3 for right around 70 on amazon Boost, oil and volt Quote Link to comment Share on other sites More sharing options...
Imp558 Posted August 14, 2016 Report Share Posted August 14, 2016 they look a lot like my glowshift gauges. I love how they black out when they're turned off Quote Link to comment Share on other sites More sharing options...
Daermos Posted August 14, 2016 Author Report Share Posted August 14, 2016 Yeah I am trying to figure out wiring for both light and switch then will get installed Quote Link to comment Share on other sites More sharing options...
Daermos Posted August 14, 2016 Author Report Share Posted August 14, 2016 Decided to go a bit different route i see a lot if piller clusters so I decided to build my own driver info center Quote Link to comment Share on other sites More sharing options...
