shurup Posted March 21, 2014 Report Posted March 21, 2014 Does anyone have scan of this book? I found this manual in ebay. Quote
mfewtrail Posted March 23, 2014 Report Posted March 23, 2014 I have the general troubleshooting/repair information from the factory service manuals if you need anything from that. I do not have this book in particular. Quote

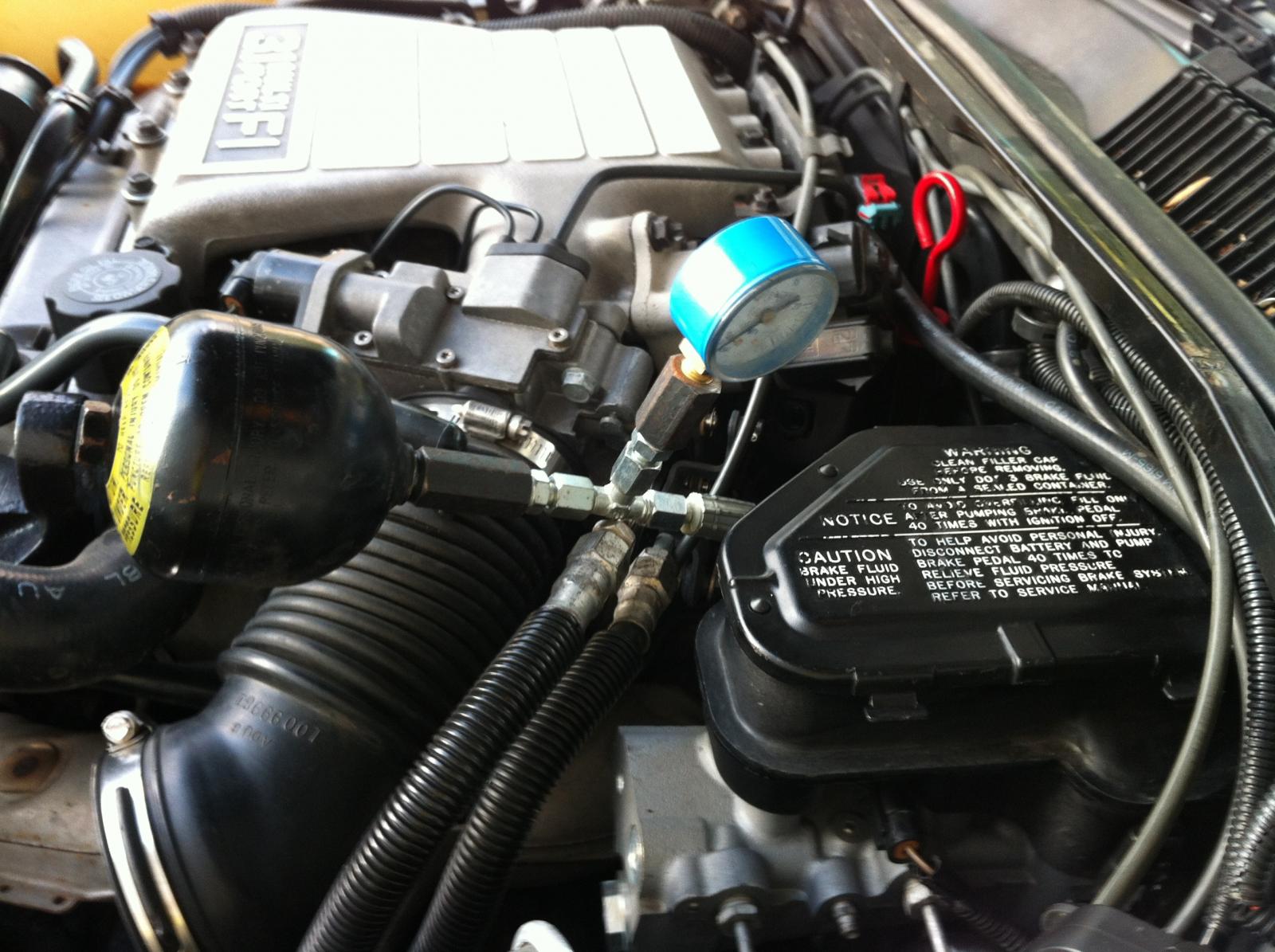

shurup Posted March 23, 2014 Author Report Posted March 23, 2014 (edited) My PM3 does not have any errors, and brake & antilock lamp not lighting. I made the tool to check the pressure, it indicates that the accumulator is charged, the pressure switch is OK. But each time when I press the brake pedal immediately motor pump is run, hold the pedal motor pump starts every 20-25 seconds. Maybe somebody knows how to fix it? Edited March 24, 2014 by shurup Quote
mfewtrail Posted March 25, 2014 Report Posted March 25, 2014 How much of a charge did your accumulator have? Quote

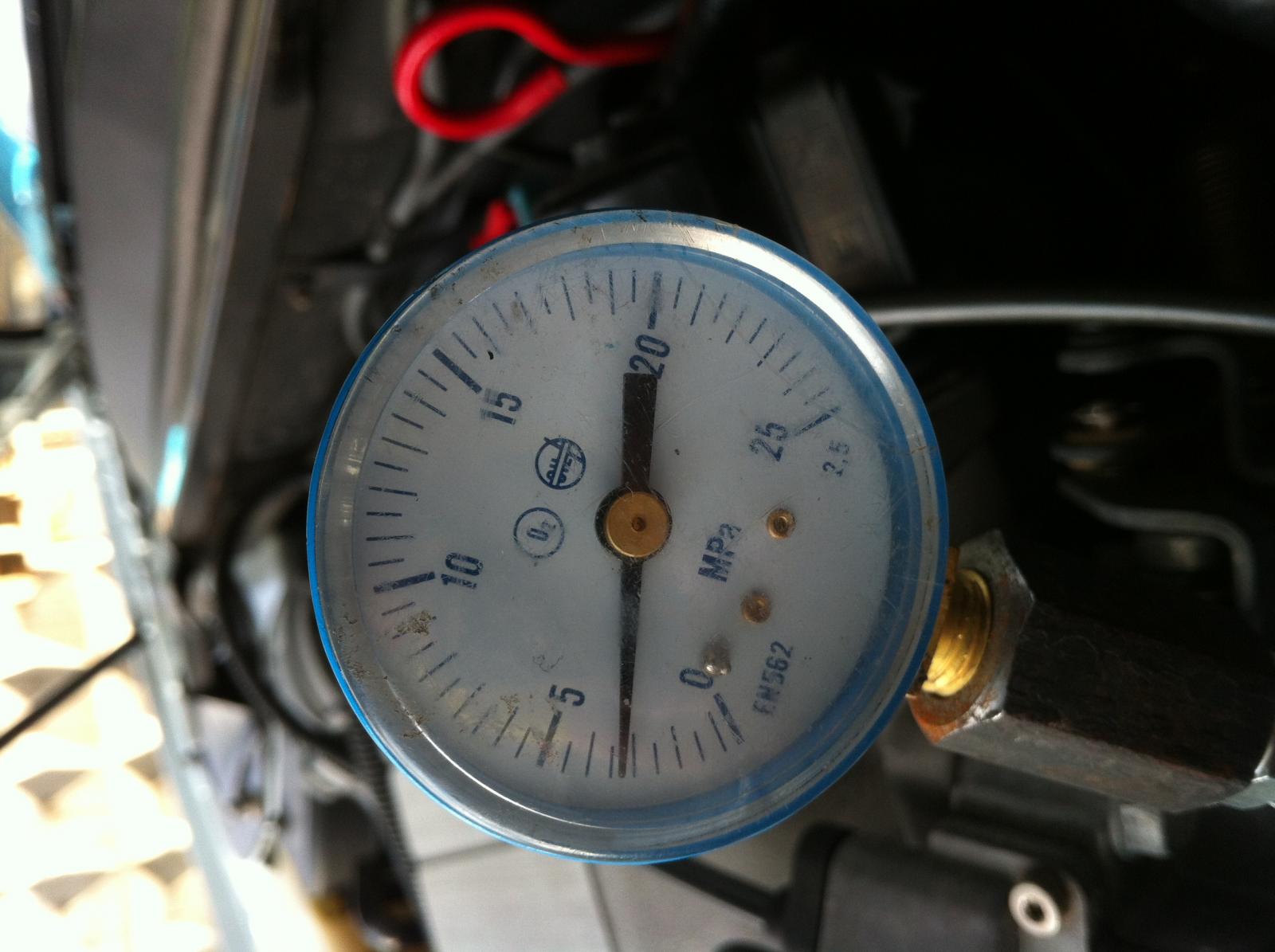

shurup Posted March 25, 2014 Author Report Posted March 25, 2014 I think it is full, 3,5 MPa = 507 psi Quote
shurup Posted March 25, 2014 Author Report Posted March 25, 2014 is there any pictures in your book with a description of the system, such as on photo ? Quote
mfewtrail Posted March 26, 2014 Report Posted March 26, 2014 Shurup, the precharge pressure of the accumulator is listed as 1200psi in the service manuals. It doesn't necessarily have to be 1200psi for it to function fine, but 500psi is getting low which will cause longer and more frequent pump running. Are you sure the antilock light in the cluster works on your car? I'm assuming you've checked that already, but I wanted to ask just to confirm. When they get low, they usually trigger the amber anti-lock light. I don't recall a detailed diagram of the unit as pictured above in the factory manuals. I can copy some stuff from the manual for you later. Quote

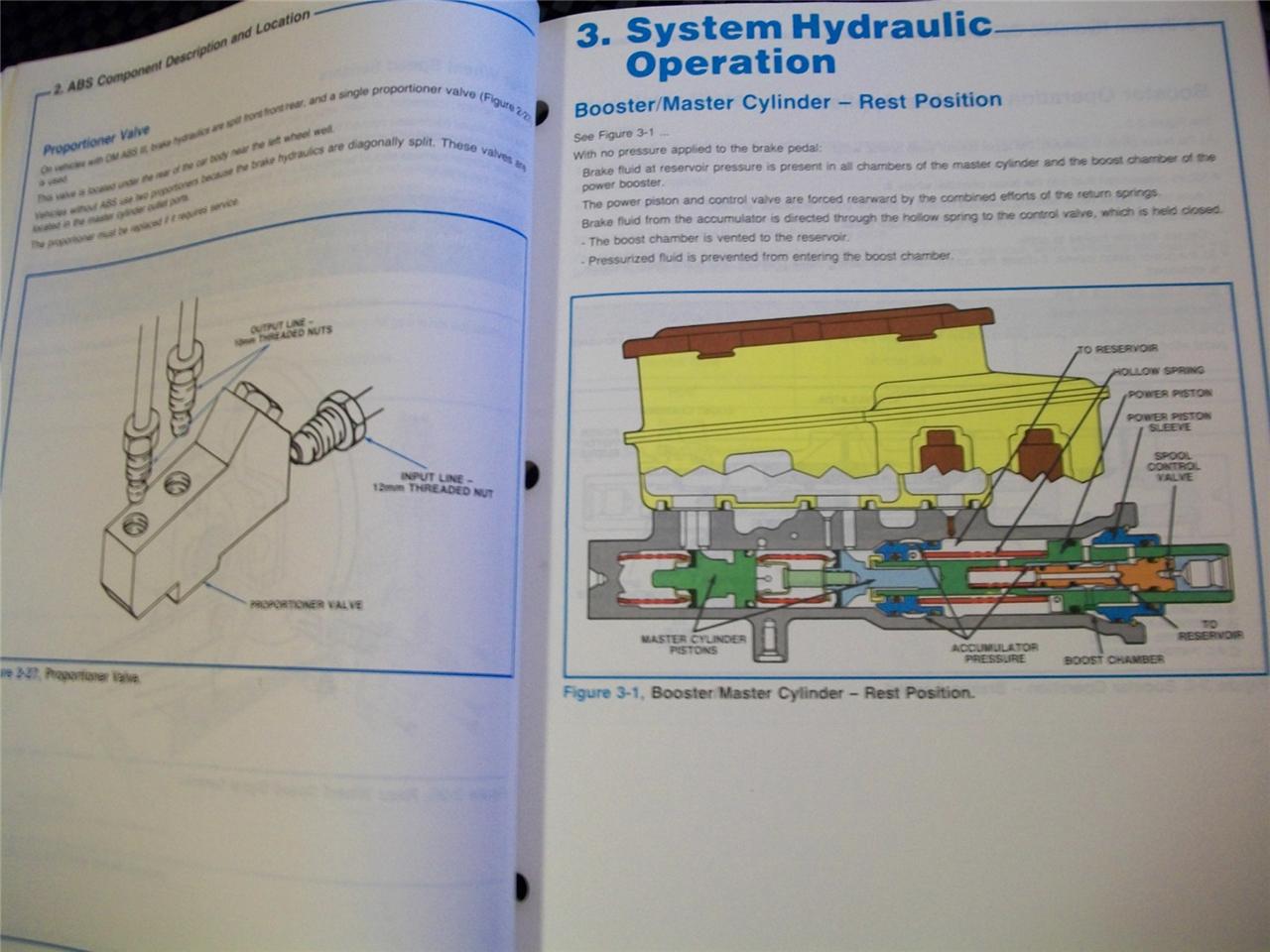

shurup Posted March 26, 2014 Author Report Posted March 26, 2014 (edited) Ok, but in HYDRAULIC DIAGNOSIS (1) And, why when I hold the pedal motor pump starts every 20-25 seconds? Edited March 26, 2014 by shurup Quote
mfewtrail Posted March 26, 2014 Report Posted March 26, 2014 Ok, but in HYDRAULIC DIAGNOSIS (1) [ATTACH=CONFIG]15714[/ATTACH] And, why when I hold the pedal motor pump starts every 20-25 seconds? What I'm saying is you're close to the point where the accumulator charge low enough to cause the pump motor to run more often to build pressure back up to what the unit wants it to be. Pre-charge on our OEM accumulators was rated at 1200psi for what it's worth. With a good charge, you get more brake pedal presses OR more time holding the pedal down before the pump needs to run. There's some time based tests that can confirm your charge is low. I won't be able to grab any info for you until tomorrow, but I'll copy a large portion of the factory service manual PMIII troubleshooting section then. It will be around ~7-8pm EST tomorrow before I'm able to post it. Quote

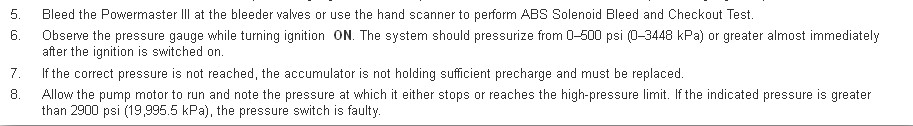

mfewtrail Posted March 28, 2014 Report Posted March 28, 2014 Here's the full page from the accumulator test that you posted a small picture of. If you need more info, let me know. I'm planning on scanning all the PMIII info from the service manual sometime soon for everyone here to reference. Click the thumbnail images for larger photos. Quote

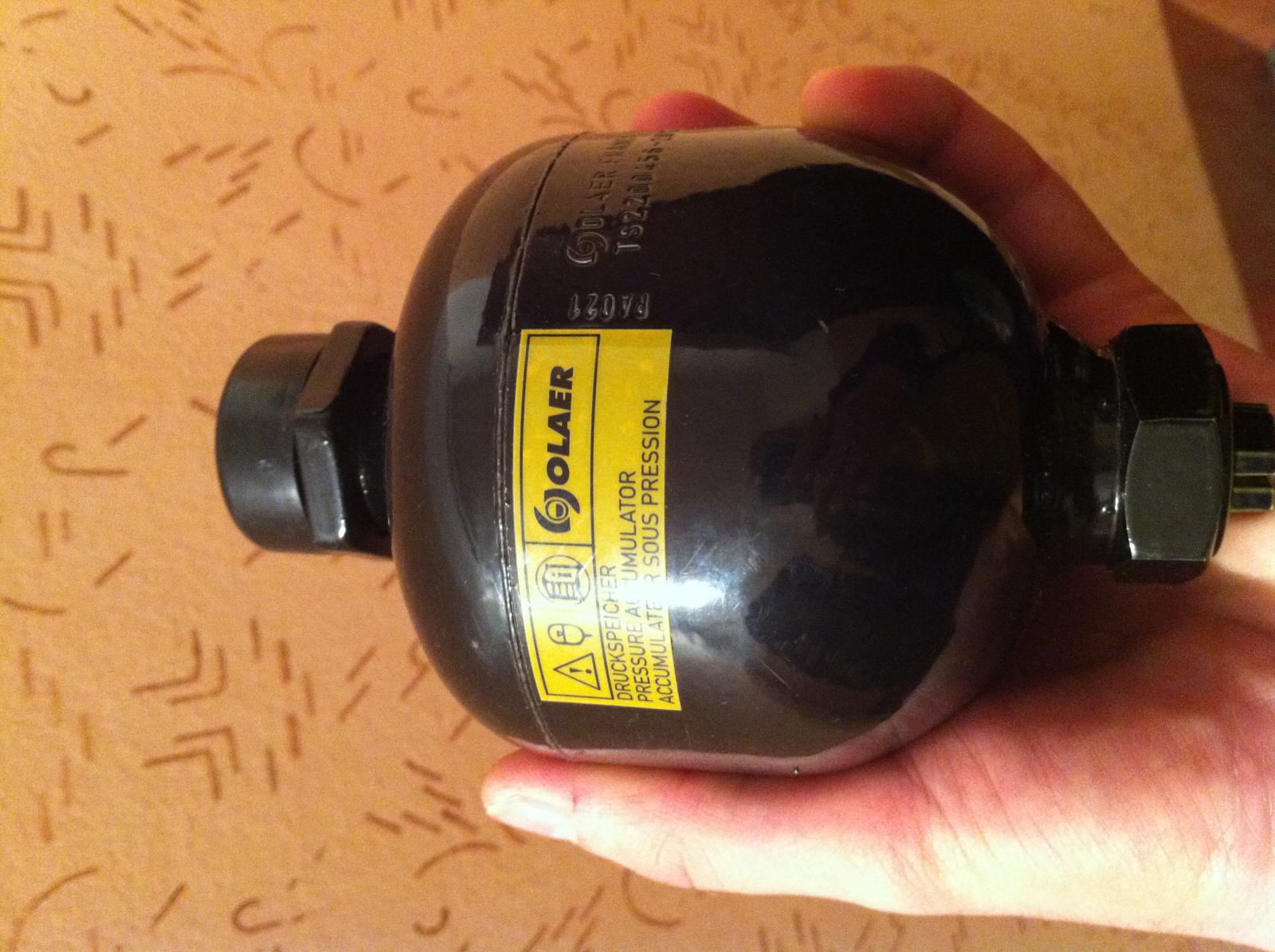

shurup Posted March 29, 2014 Author Report Posted March 29, 2014 (edited) Thanks. I try to install Olaer rechargeable hydraulic accumulator. These are readily available in Kiev. http://www.olaer.nl/wp-content/uploads/downloads/2011/10/Diaphragm-Accumulator-100-250-bar_Datasheet.pdf Edited March 29, 2014 by shurup Quote

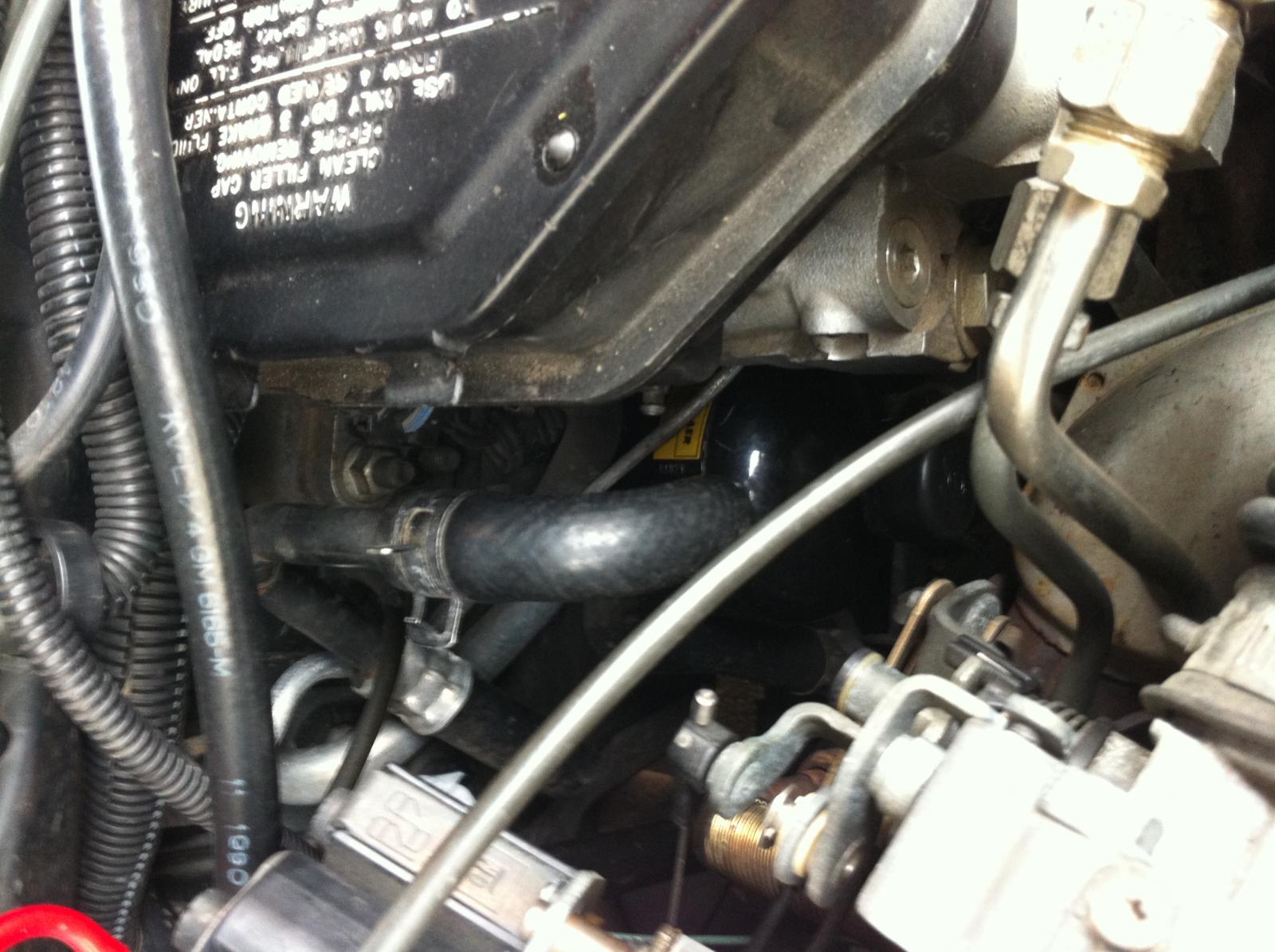

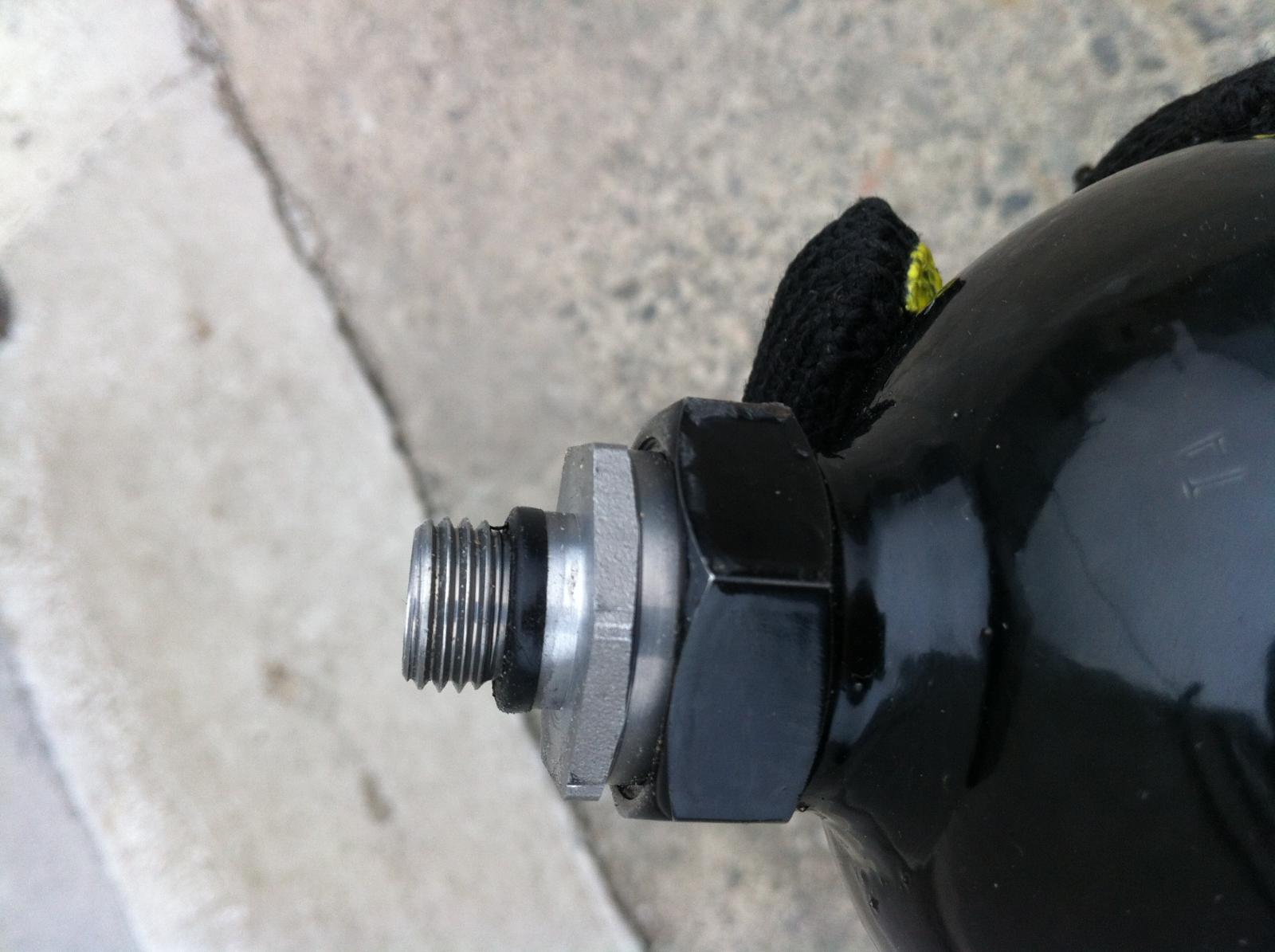

shurup Posted April 12, 2014 Author Report Posted April 12, 2014 I installed accumulator and now the brakes are excellent. Quote
mfewtrail Posted April 12, 2014 Report Posted April 12, 2014 I installed accumulator and now the brakes are excellent. Good to hear. If you don't mind posting it: How much do those rechargeable accumulators cost over there and what's the price for a recharge? Quote
shurup Posted April 12, 2014 Author Report Posted April 12, 2014 I paid for the accumulator with the adaptor $ 257, free charging, recharging will cost about $ 30. Quote
mfewtrail Posted April 12, 2014 Report Posted April 12, 2014 I paid for the accumulator with the adaptor $ 257, free charging, recharging will cost about $ 30. That doesn't seem too bad for what you've got considering the recharges are reasonably priced. Whenever I'm in need of another one, I might take this same route since Olaer seems to have operations in the US as well. Quote
movielover40 Posted December 29, 2014 Report Posted December 29, 2014 Has anyone converted the Delco Moraine ABS-III system to a regular non abs system? Quote
GrandPrixGTP Posted January 22, 2016 Report Posted January 22, 2016 I installed accumulator and now the brakes are excellent.13850.attach I am having a very similar issue with my Grand Prix GTP. Can you tell me what the part # is for the accumulator you installed? Quote
Heartbeat1991 Posted January 22, 2016 Report Posted January 22, 2016 I am having a very similar issue with my Grand Prix GTP. Can you tell me what the part # is for the accumulator you installed? They are nearly impossible to find. Quote
mfewtrail Posted January 23, 2016 Report Posted January 23, 2016 I am having a very similar issue with my Grand Prix GTP. Can you tell me what the part # is for the accumulator you installed? He had a custom ordered accumulator. No idea on part number. He also converted to vacuum brakes not too long after posting this. I forget if he had an issue with the accumulator or his master cylinder failed later. Quote
