Reride Posted March 8, 2014 Report Share Posted March 8, 2014 (edited) I want to replace the chime module in my '92 CSC w/one from a '94 CSC. The '92 module has a purple wire and a red wire that plugs in next to the chime module. The '94 module has a 5 wire plug that runs thru a harness. After searching I found a thread that gave me the pin-outs for the '94. Can anyone tell me if the terminals for red & purple wires are used and what they go to for that matter? Thanks, Steve Edited March 9, 2014 by Reride Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted March 8, 2014 Report Share Posted March 8, 2014 I'll look in my 1992 manual tomorrow, it's in the garage right now. Quote Link to comment Share on other sites More sharing options...
Reride Posted March 8, 2014 Author Report Share Posted March 8, 2014 (edited) Thank you, Jay. I have a '92 service manual, but it doesn't match what came out of the car. Steve Edited March 8, 2014 by Reride Quote Link to comment Share on other sites More sharing options...

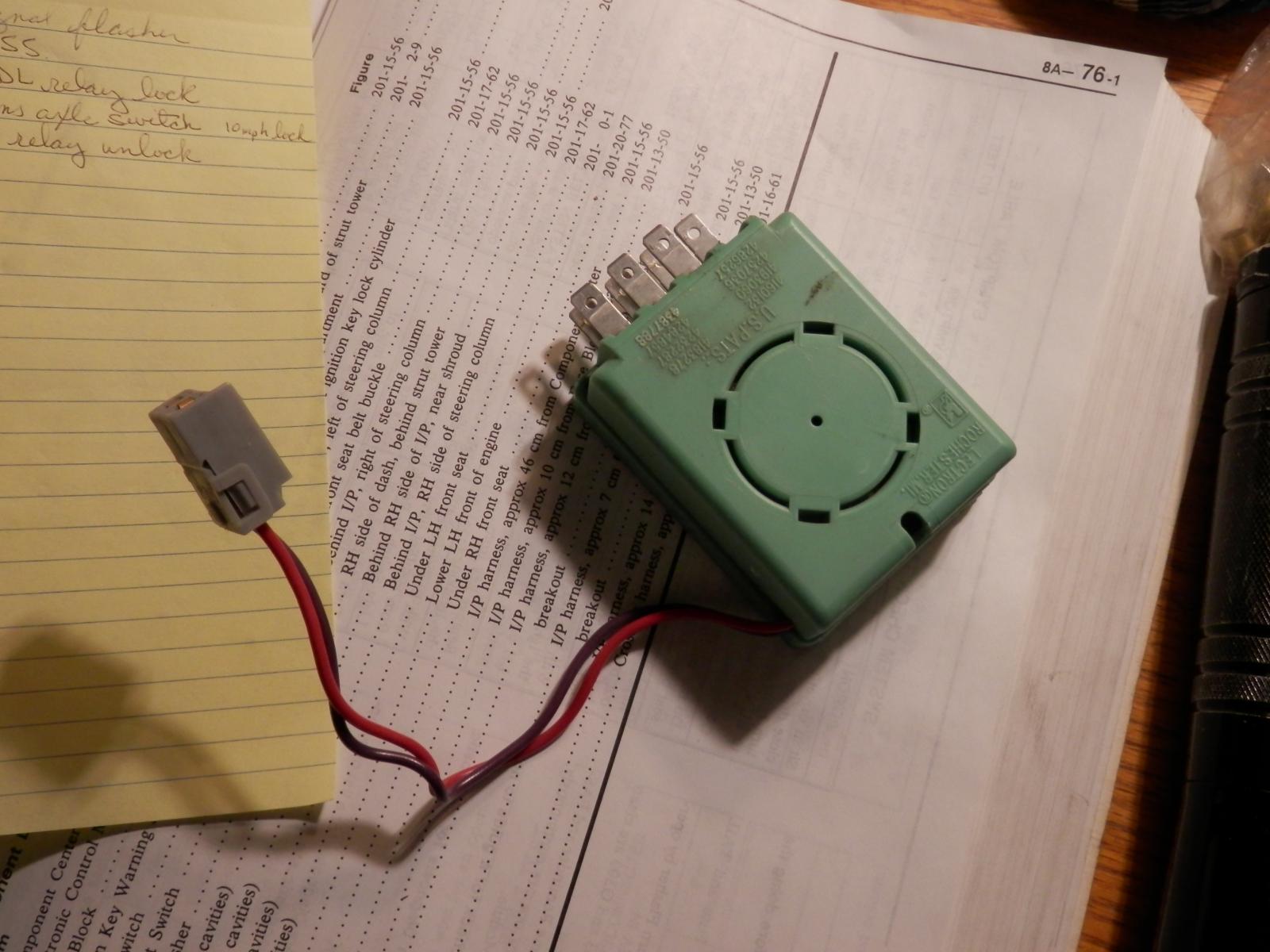

Reride Posted March 8, 2014 Author Report Share Posted March 8, 2014 Here's a pic of what was there. Quote Link to comment Share on other sites More sharing options...
Reride Posted March 9, 2014 Author Report Share Posted March 9, 2014 Well it appears that it does match if you are smart enough to read the manual correctly . Could someone tell what the 8th blade on the '94 chime module is for? Thanks ,Steve. Quote Link to comment Share on other sites More sharing options...
