carkhz316 Posted June 10, 2013 Report Share Posted June 10, 2013 I can't find anything on Google for the Monte. My Chilton manual has most every diagram but these. I am trying to find out the resting wires so I can make a clutch switch and still have brakes and cruise and whatnot. I found that the 2 brown wires on the first switch are for a cruise disengagement. I found that the other switch has orange and white for brakes, TCC, and cruise disengagement as well. One pink and purple is for a signal coming out of and returning to the PCM. The other pink, and green wire I have no idea what its for other than maybe abs activation. Can someone please help me out here. Thanks! Quote Link to comment Share on other sites More sharing options...
RobertISaar Posted June 10, 2013 Report Share Posted June 10, 2013 year/engine/pertinent options? Quote Link to comment Share on other sites More sharing options...
carkhz316 Posted June 10, 2013 Author Report Share Posted June 10, 2013 Sorry, on my phone. 1998 Monte z34; 3800, all options available for that year. Quote Link to comment Share on other sites More sharing options...

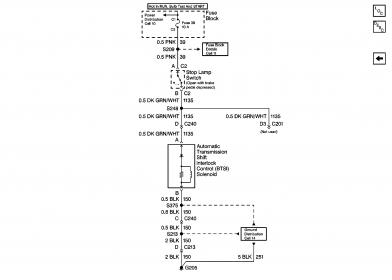

RobertISaar Posted June 11, 2013 Report Share Posted June 11, 2013 http://imgur.com/7vp2olj,xyuP3rT that's the best i could come up with... i was able to find relevant schematic views, but they weren't switch specific. if there are any you think would be useful, let me know. Quote Link to comment Share on other sites More sharing options...
carkhz316 Posted June 11, 2013 Author Report Share Posted June 11, 2013 Thank you RobertISaar, I did manage to find that one just a bit ago in my book, so that helps narrow that down. I think I have the mysterious pink and green/ white wires narrowed down. After some more googling, I figured out that it is most likely for the brake shifter interlock. Sure enough, there is a green/ white wire going to the shifter area. So, since I don't need that anymore, I'm going to wire that portion of the switch in series with the two brown wires on the standalone cruise cutout switch so I can have a factory style cruise cancel with pressing either the brake or clutch. I also picked up a clutch safety switch and am going to wire that in series with my starter wire so that functions as stock too. Quote Link to comment Share on other sites More sharing options...
