Reride Posted March 30, 2013 Report Share Posted March 30, 2013 I need dash pin-outs for the analog ub3 in a '92 CS for my digi conversion. Quote Link to comment Share on other sites More sharing options...
94 olds vert Posted March 30, 2013 Report Share Posted March 30, 2013 Check this thread out. Should be some good info in there. http://www.w-body.com/showthread.php/53113-Digi-UB3-adapter Quote Link to comment Share on other sites More sharing options...
Reride Posted March 30, 2013 Author Report Share Posted March 30, 2013 I've seen your thread (very good info ) Nate & the '92 CS is pinned differently. Do you know if the color code for the wire is the same? Quote Link to comment Share on other sites More sharing options...
RobertISaar Posted March 30, 2013 Report Share Posted March 30, 2013 http://imgur.com/a/ce0Bh there be 1992. Quote Link to comment Share on other sites More sharing options...

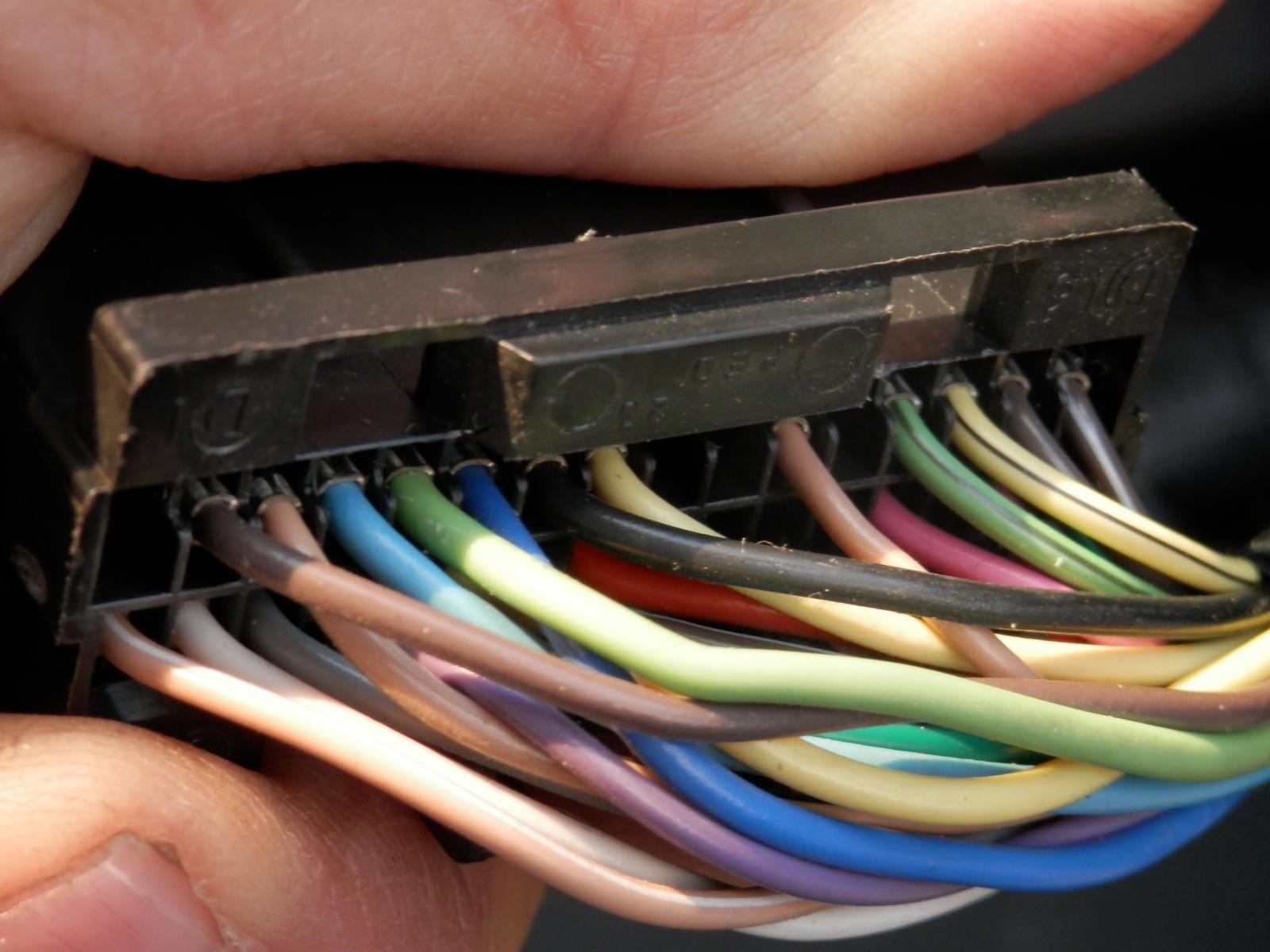

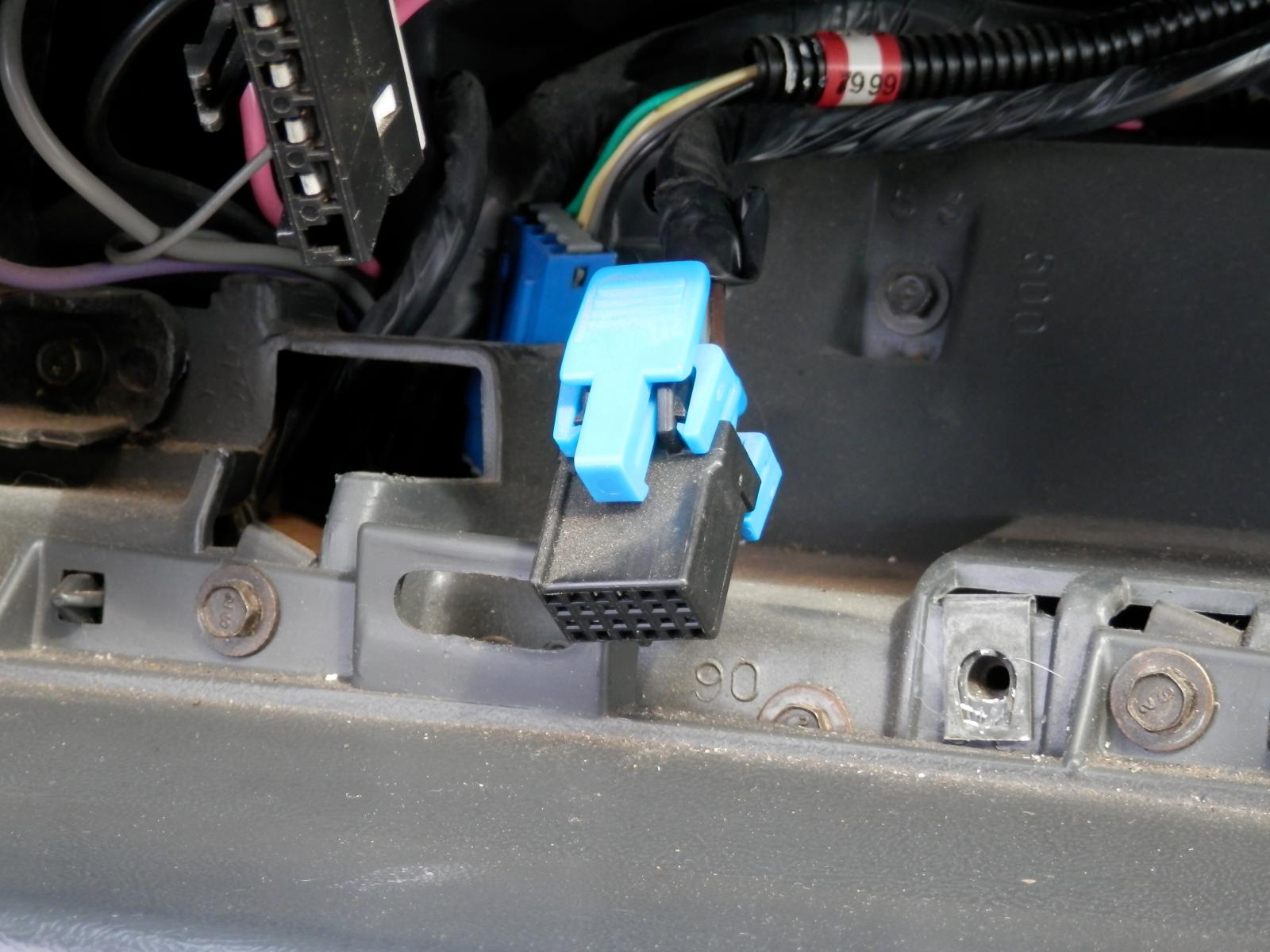

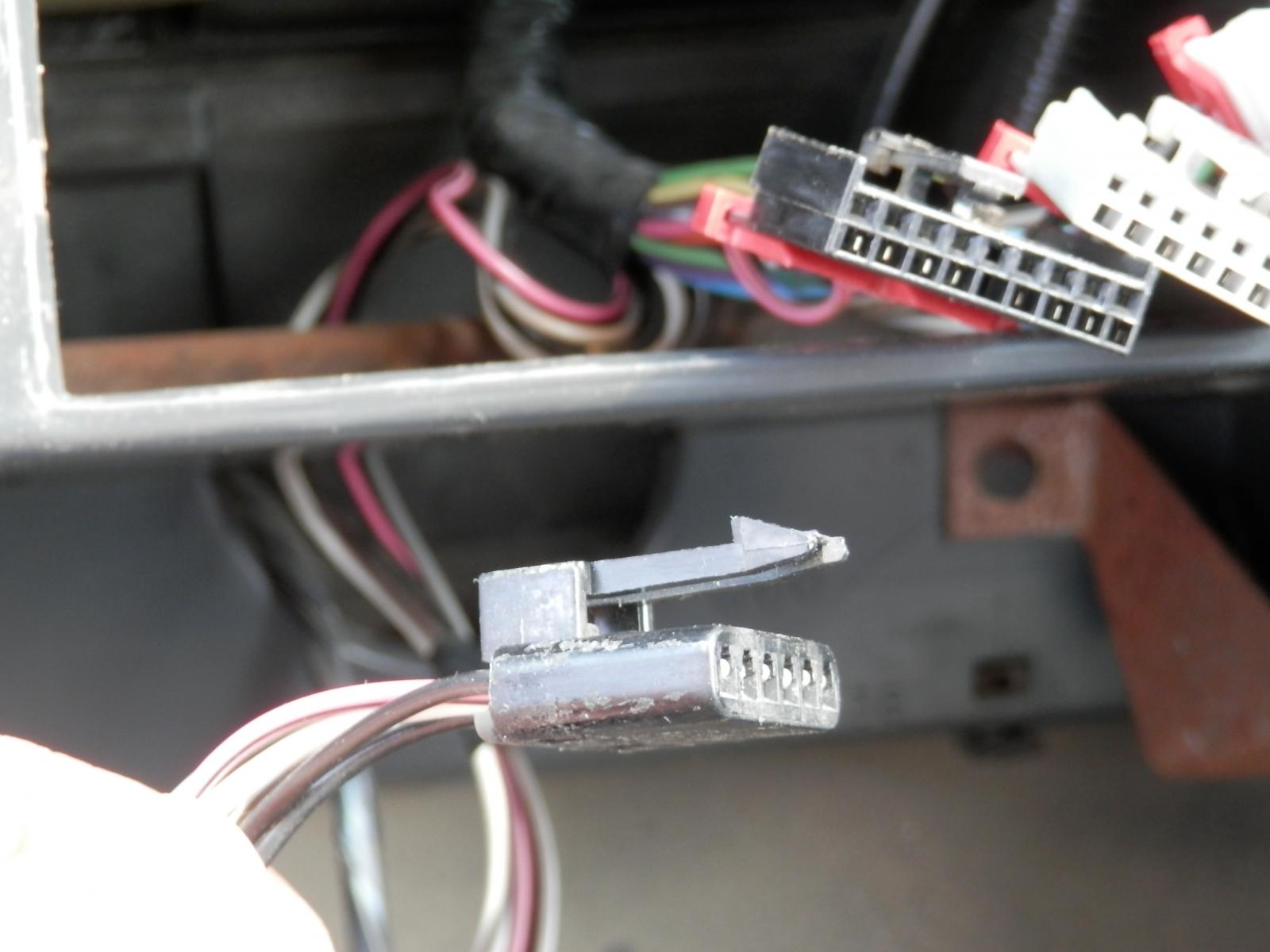

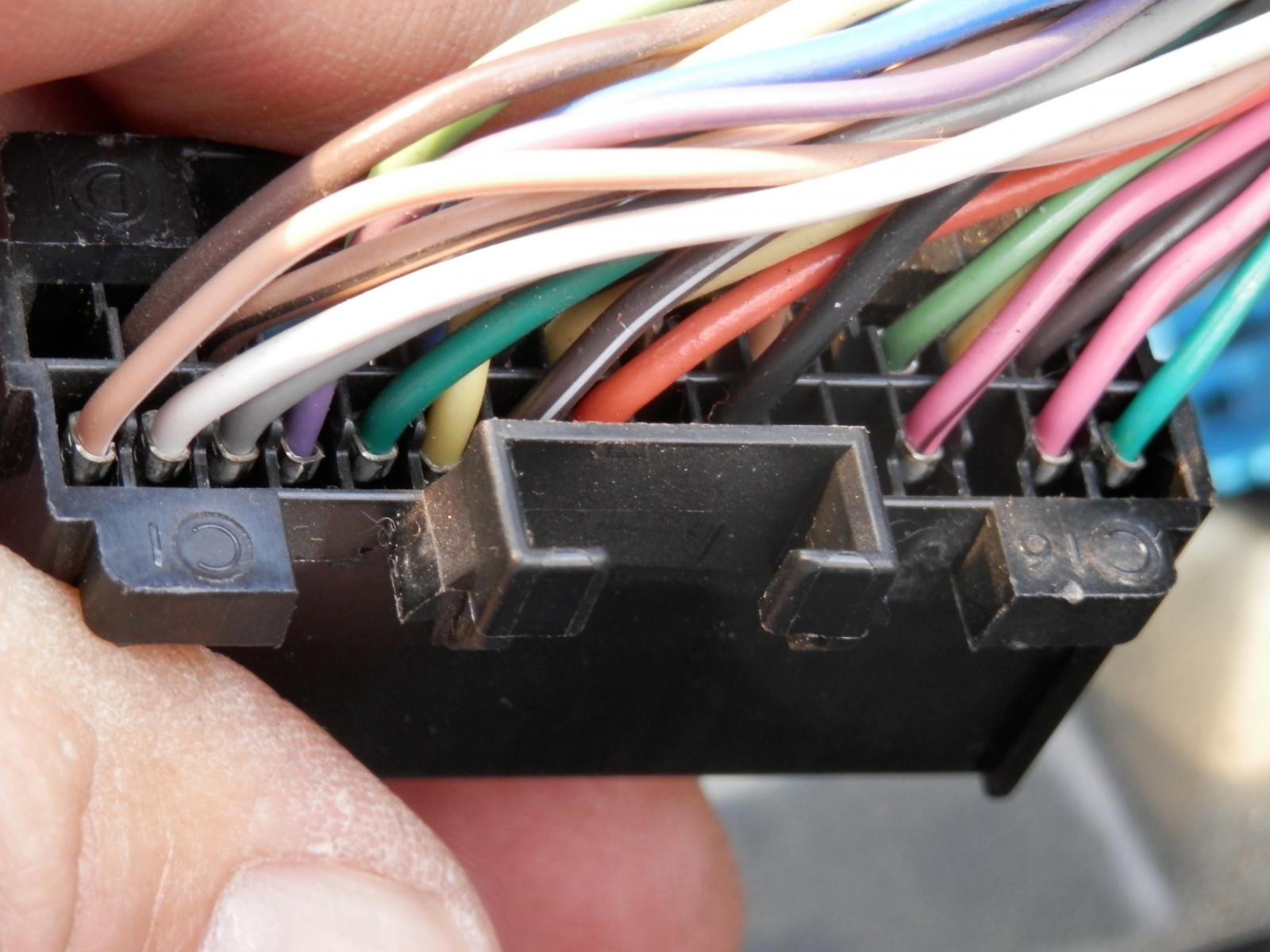

Reride Posted March 30, 2013 Author Report Share Posted March 30, 2013 (edited) Thanks for the diagram RobertlSaar! It's very similar to my '92 CS but, it is slightly different. Mine has a yellow wire in C6, a Brown/White in C7, & D1 is not used which makes sense...no airbags in '92. I also discovered that my car IS pre-wired for a HUD:dance:. Heck with the naye sayers...lol! Pics below. D side Edited March 30, 2013 by Reride Quote Link to comment Share on other sites More sharing options...
Reride Posted April 16, 2013 Author Report Share Posted April 16, 2013 Can anyone tell me if the '92 connecter is pinned differently because it is pre-wired for the HUD? If so, how should I deal with it....just splice into a matching color wire? Quote Link to comment Share on other sites More sharing options...
