Wire Diagrams for AC Delco D7070C Master Window Switch (88894537)


Recommended Posts

Posted

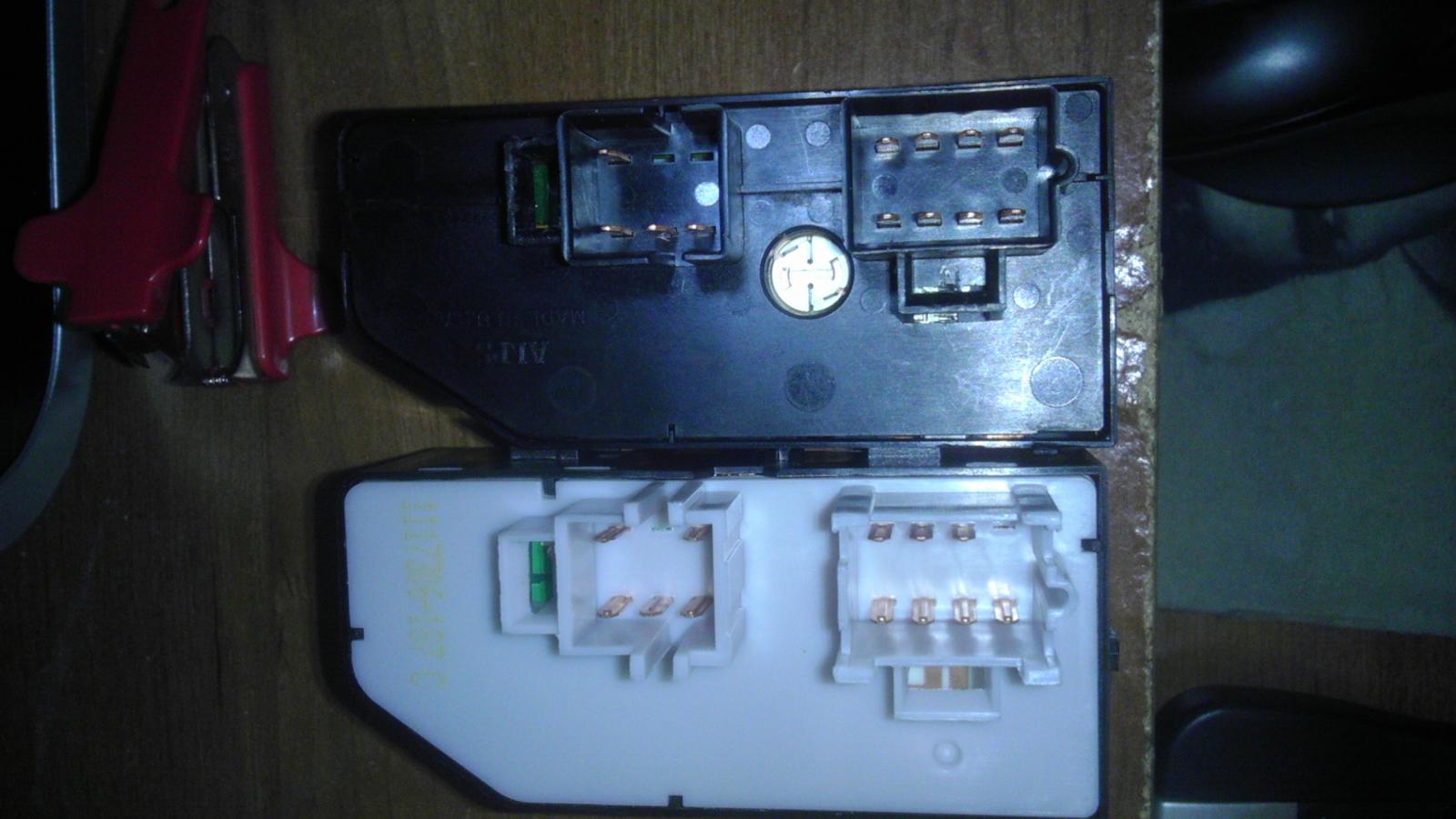

Here is the Wire Diagrams for AC Delco D7070C Master Window Switch (88894537) This is for 94-96 Chevy and Pontiac Coupe and Sedan. I couldn't find it any place on the net till I bought a OEM one with the wire Diagrams that came with the switch. I took a picture of the old and new side by side and make copy of the 3 Diagrams that came with the new switch.



Enjoy

12457578 sheet1.PDF

88894535 sheet1.PDF

88894535 sheet2.PDF
