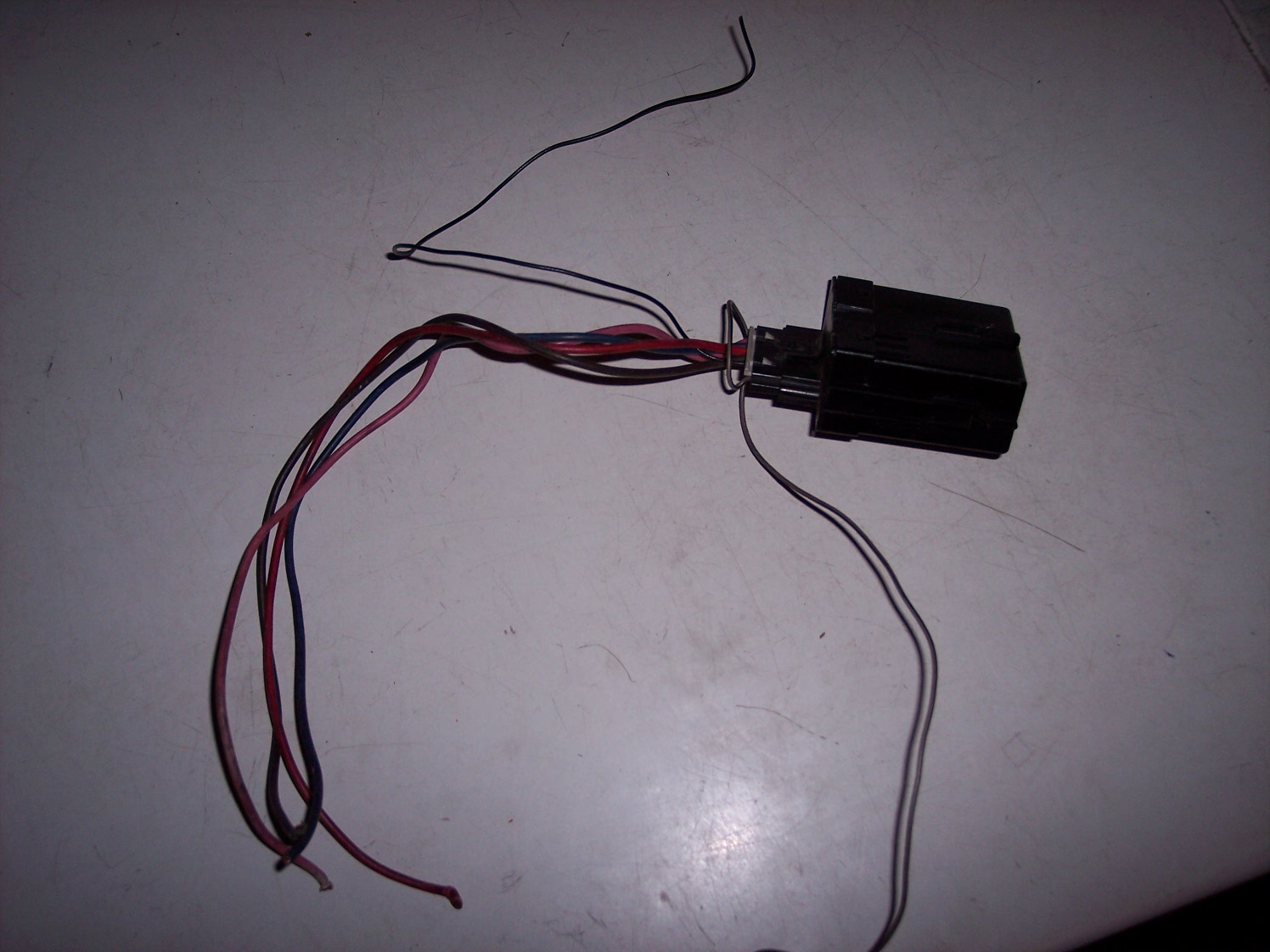

gpchris Posted June 12, 2011 Report Share Posted June 12, 2011 (edited) For those of you who don't know R.A.P. is the thing that keeps your radio going when you shut the car off and take out the key. This version keeps the radio on but also sends power to the windows when the doors are open and for 45 seconds after they close. Say its starting to rain and you need to roll your windows up. No problem just open the door and push the button. The module comes in most 1995ish firebirds and camaros. It can be found tucked up under the dash by the gas pedal. It's close to the firewall I guess you could say. Its hard to explain. Just get in there good and you'll find it Heres my simplified wiring diagram. For the diode all you have to do is go to radio shack and tell them you need a 3 amp diode and they'll sell you a 2 pack for $1.50. ***Wire colors may vary by year, some wires are HOT AT ALL TIMES, disconnect your battery before doing any wiring!** Here is what a firebird/camaro RAP module looks like First step is to remove the fuse panel. It can be drug out from under the dash. The 4 large wires you see are to the circuit breakers from my diagram. Cut the Purple one, it is the power to the windows (hot with IGN) Next you'll need to find the radio power wire. It is on the bottom row. It is the larger brown wire. Cut it leaving an equal amount of wire on both sides. Next connect the PINK RAP wire to the PURPLE window wire and the BLUE RAP wire to the BROWN RADIO wire. Tape off the PURPLE wire coming out of the HARNESS Connect the BROWN RAP wire to the BROWN HARNESS wire Next TAP into the RED power seat wire with the RED RAP wire !WARNING it is HOT AT ALL TIMES! please disconnect your battery if you don't want to die. Now all 4 large wires are taken care of you'll need to find the door pin switch wires. They were blue in my car, they're white in older cars. Cut both of them leaving a good amount of wiring on both sides. The switch grounds to the body so the passengers side will only have one wire. The drivers side has 2. ONLY cut the one that matches the passengers side. The other wire is for the chime module. Now that you have a wire cut on each side, take the ends that lead to the pin switches, wire them both to the same diode. Now take the ends coming out of the harness and wire them to the other side of the diode. Now just run the small BLACK wire coming out of the RAP to a GROUND. And that's it! I think its a pretty cool mod. Plus its FREE.. That is if you can fit the RAP module in your pocket, I did Edited August 23, 2013 by gpchris Quote Link to comment Share on other sites More sharing options...
94 olds vert Posted June 12, 2011 Report Share Posted June 12, 2011 Sticky! Nice write up. Quote Link to comment Share on other sites More sharing options...
gpchris Posted June 12, 2011 Author Report Share Posted June 12, 2011 (edited) Sticky! Nice write up. Thanks, I wanted to make this an easy mod for everyone. It was a little intimidating to me at first but it really is an easy mod. It take like an hour tops. Edited August 23, 2013 by gpchris Quote Link to comment Share on other sites More sharing options...
RobertISaar Posted June 12, 2011 Report Share Posted June 12, 2011 i saw a similar setup on a beretta forum but i've wondered how simple it would be for W's... Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted July 20, 2011 Report Share Posted July 20, 2011 Taylor did this a LONG time ago. I've got about 30 of these modules laying around somewhere. Quote Link to comment Share on other sites More sharing options...
jimmyfloyd Posted July 20, 2011 Report Share Posted July 20, 2011 Any pictures of the modules? Quote Link to comment Share on other sites More sharing options...

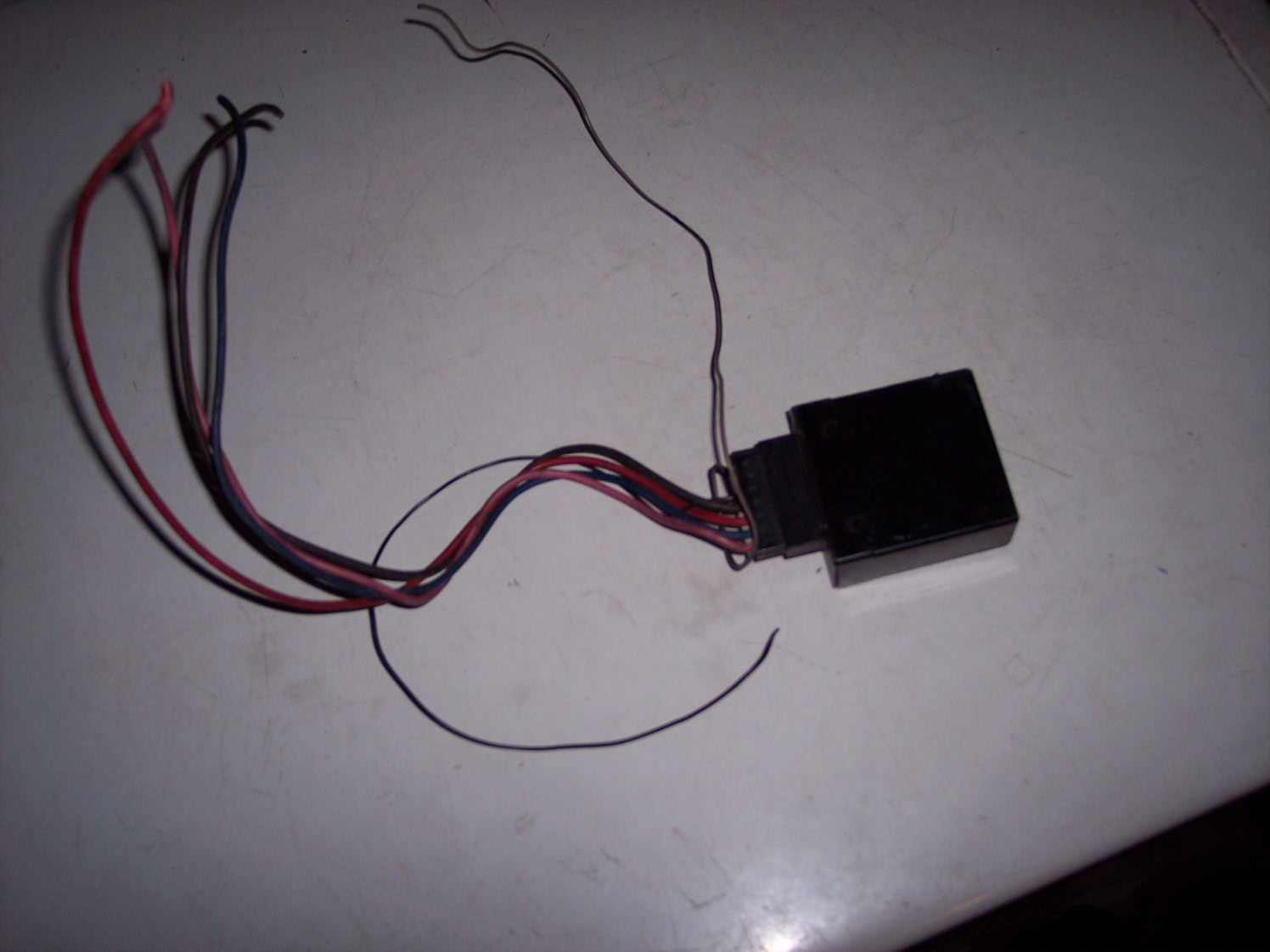

gpchris Posted August 17, 2011 Author Report Share Posted August 17, 2011 This is what the module looks like: Quote Link to comment Share on other sites More sharing options...
Z34guy Posted August 18, 2011 Report Share Posted August 18, 2011 mods, sticky this stuff o_o Quote Link to comment Share on other sites More sharing options...
runt Posted May 23, 2012 Report Share Posted May 23, 2012 Bump for sticky. I think this is a good thread to put up top. Quote Link to comment Share on other sites More sharing options...
GaPrix Posted May 23, 2012 Report Share Posted May 23, 2012 I want to do this where can I find a RAP module. Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted May 23, 2012 Report Share Posted May 23, 2012 junkyard? Quote Link to comment Share on other sites More sharing options...
no1kicker Posted May 23, 2012 Report Share Posted May 23, 2012 Looks like the part # is 12135089 on that module. I found this diagram from a Camaro site. http://shbox.com/1/rap_schematic.jpg Quote Link to comment Share on other sites More sharing options...
RobertISaar Posted May 23, 2012 Report Share Posted May 23, 2012 here's a non-watermarked version and i threw in the operation description as well. http://i.imgur.com/UVuiT.png http://i.imgur.com/VOFPh.png Quote Link to comment Share on other sites More sharing options...
crazyd Posted May 29, 2012 Report Share Posted May 29, 2012 I went thru 4 cars yesterday trying to find one of these and came up empty. I did some research, hoping to find it would be in some other car, but this module was only used in 1993-1995 F-bodies. After that I figure they must have integrated it into the BCM rather than having a separate module. If anyone comes across one and can take a pic of where it is installed in the F-bodies that would be helpful. Quote Link to comment Share on other sites More sharing options...
rockfangd Posted July 17, 2012 Report Share Posted July 17, 2012 Thanks. I have pulled the units before, and 95 is the exact year. For some reason pretty common at the junkyards. I was going to put them in but when I got my caddys both already have RAP. I like RAP for the moonroof because I always have a tendancy to forget to shut it. Very nice writeup and pics. Thank god for FAQs. W-body forum yet again FTW Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted July 17, 2012 Report Share Posted July 17, 2012 I went thru 4 cars yesterday trying to find one of these and came up empty. I did some research, hoping to find it would be in some other car, but this module was only used in 1993-1995 F-bodies. After that I figure they must have integrated it into the BCM rather than having a separate module. If anyone comes across one and can take a pic of where it is installed in the F-bodies that would be helpful. Located in a little pocket just above the gas pedal. Quote Link to comment Share on other sites More sharing options...
KAlsteen Posted February 27, 2013 Report Share Posted February 27, 2013 My ex's 97 Bonneville retained power to the radio and windows 5 minutes after the car was turned off or until the door was opened. Would that be the same module in this thread or something different? Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted February 27, 2013 Report Share Posted February 27, 2013 My ex's 97 Bonneville retained power to the radio and windows 5 minutes after the car was turned off or until the door was opened. Would that be the same module in this thread or something different? Way different. I want to say the 1997 Bonneville was BCM controlled. Quote Link to comment Share on other sites More sharing options...
crazyd Posted April 20, 2013 Report Share Posted April 20, 2013 Quote Link to comment Share on other sites More sharing options...
Nas Escobar Posted May 19, 2014 Report Share Posted May 19, 2014 Sorry to bring this back from the dead, but has anyone done this mod to a 88-94? I was trying to do this mod to my convertible but I had to stop because there was no power window circuit or power seat circuit. With that said, I'm kinda stuck here since I wanted the windows to go up and down. Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted May 20, 2014 Report Share Posted May 20, 2014 http://www.fieros.de/en/articles/BCM.html I'm gonna do this to my truck...Because I'm crazy. Quote Link to comment Share on other sites More sharing options...
Nas Escobar Posted May 20, 2014 Report Share Posted May 20, 2014 So you're saying it's going to be easier to install a BCM than the RAP box for the radio and windows? Doesn't that leave me with the same issue that the 94's don't have breakers for the window and seats? I'm a bit of a loss, although I would get to have the panic button for the Cutlass if I did add a BCM. Quote Link to comment Share on other sites More sharing options...
ManicMechanic Posted May 20, 2014 Report Share Posted May 20, 2014 I didn't say it was easier...Just that I am crazy enough to do it. Quote Link to comment Share on other sites More sharing options...
Night Fury Posted May 20, 2014 Report Share Posted May 20, 2014 Dear lord. Good luck sir. Stuff like that scares me. Do my GP next. Quote Link to comment Share on other sites More sharing options...
Nas Escobar Posted May 20, 2014 Report Share Posted May 20, 2014 I didn't say it was easier...Just that I am crazy enough to do it. I'm sorry I misinterpreted your post. It's been a long day. Honestly if I knew how my car was wired, I'd be crazy enough to do that as well. It would give me a temporary alarm until I can afford a Viper mile range one with remote start. You and I are on the same boat. I'm the guy that used Sebring seals on his Cutlass Convertible to fix his water problem (although with my crooked frame it still persists but not as bad where the whole car was getting wet) So I'm going to ask this again... how did the guys with 88-94's do this mod? Or was this stickied for the late gen 1 guys? A wire schematic of a 88-94 would help a lot. Quote Link to comment Share on other sites More sharing options...
