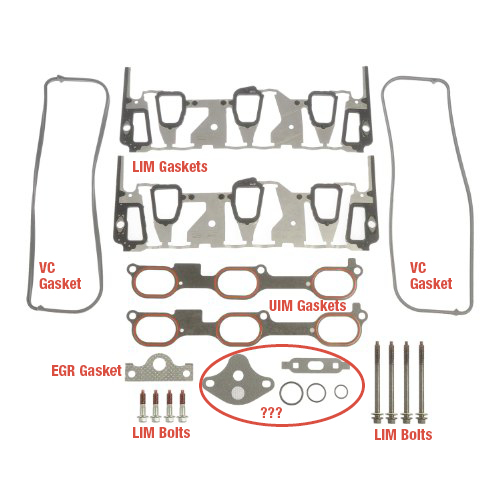

Penglii Posted May 25, 2011 Report Share Posted May 25, 2011 I am getting ready to do a LIM job on my '94 Sedan and I have the Dorman Gasket Set #615-206. I can identify most of the included seals... the LIM gaskets, the VC Gaskets, the UIM Gaskets, the LIM Bolts, and the EGR Gasket. There are 2 paper gaskets and 3 O-rings that I cannot identify... What are they for? I have attached a picture for reference. Quote Link to comment Share on other sites More sharing options...
alec_b Posted May 25, 2011 Report Share Posted May 25, 2011 The larger paper gasket is another EGR gasket. One of the o-rings is for the oil pump drive. The other three ??? Quote Link to comment Share on other sites More sharing options...
Penglii Posted May 25, 2011 Author Report Share Posted May 25, 2011 OK...some googling says that the 3 paper gaskets are (left to right) 94-95 EGR, 96-99 EGR and 00-05 EGR. From a inventory simplicity standpoint I suppose it makes sense for that additional seals pack to cover all the 3x00 styles. The large O-ring does match the brown-style oil pump drive ring I got... I wonder what material dorman makes theirs out of. I'll be using the brown one just to be safe. So that leaves the other 2 O-rings. Fuel rail seals? Quote Link to comment Share on other sites More sharing options...
BXX Posted May 25, 2011 Report Share Posted May 25, 2011 No, thermostat seal and the water pump outlet tube seal. BTW with that kit, you will still need the 94 UIM gaskets. They should be like 10 bucks at a parts store. The ones in that Dorman kit are for largeport UIM. Quote Link to comment Share on other sites More sharing options...
RobertISaar Posted May 25, 2011 Report Share Posted May 25, 2011 problem solved: grab large port UIM! Quote Link to comment Share on other sites More sharing options...
BXX Posted May 26, 2011 Report Share Posted May 26, 2011 You need large port LIM to match... Now would be a great time for a largeport top swap:thumbsup: Quote Link to comment Share on other sites More sharing options...
Penglii Posted May 26, 2011 Author Report Share Posted May 26, 2011 No, thermostat seal and the water pump outlet tube seal. Awesome. BTW with that kit, you will still need the 94 UIM gaskets. They should be like 10 bucks at a parts store. The ones in that Dorman kit are for largeport UIM. So... they sell a kit with the LIM gaskets for the stamped rockers... but give the large port UIM gaskets? What up with that? Now would be a great time for a largeport top swap:thumbsup: LOL If I somehow manage to acquire a largeport top to swap between now and the 1st weekend in June... otherwise it's a straight LIM job this time round. Quote Link to comment Share on other sites More sharing options...
Penglii Posted June 2, 2011 Author Report Share Posted June 2, 2011 So... there is a thread on 60V6 where someone is claiming that the dorman 615-206 LIM gaskets have ports that are 1/4" too big and are therefore useless for the Ball & Stud Rocker L82 3100's the kit is sold for.... (http://60degreev6.com/forum/showthread.php/48651-1994-3.1-Oldsmobile-LIM-question) Can anyone confirm or deny this claim? I cannot imagine that Dorman would sell a LIM gasket set that does not work at all... I'm doing my LIM gaskets this weekend and have this kit and really do not want to be caught with the engine apart and the wrong gasket... Quote Link to comment Share on other sites More sharing options...
Penglii Posted June 2, 2011 Author Report Share Posted June 2, 2011 I really need to work on not being so paranoid... for reference, here is a very good PDF regarding 3100 LIM gaskets. http://www.fme-cat.com/Docs/1430.pdf Quote Link to comment Share on other sites More sharing options...
